ACTi A310 Security Camera

The ACTi A310 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

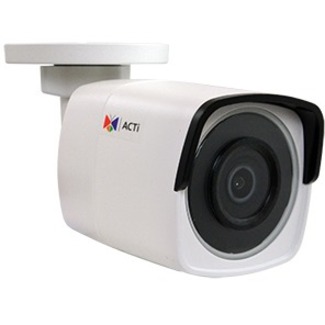

ACTi - 4MP Mini Bullet with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed lens, f2.8 mm/F1.6 H.265/H.264, 1080p/30fps, 3D DNR, MicroSD/MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10 (metal casing)

4 Megapixel
Day & Night with Superior Low Light Sensitivity and IR LED
Fixed Lens with f2.8mm/F1.6
Extreme WDR
H.265 Compression
Super wide angle
Built-in Analytics

Need a different version? See all ACTi Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

ACTi Parts Accessory Model Overview

Products and parts from ACTi.

Detailed Specs

Technical Information

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

213.25 ft

Night Vision Type:

Infrared

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

Horizontal Viewing Angle: 101.3° - Vertical Viewing Angle: 55.3°

Effective Camera Resolution:

4 Megapixel

Video

Video Formats:

H.265
H.264
H.264 (MP)
H.264 HP
MJPEG

Maximum Video Resolution:

2688 x 1520

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Fixed

Maximum Focal Length:

2.80 mm

Lens Included:

Yes

Lens Mount Type:

Board Mount

Maximum Aperture:

f/1.6

Exposure

Shortest Shutter Speed:

1/64000 Second

Longest Shutter Speed:

1/30 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Pole Mount
Junction Box Mount
Bracket Mount

Form Factor:

Mini Bullet

Durability:

Weather Proof
Vandal Proof

Product Color:

White

Height:

2.6"

Width:

2.6"

Depth:

6.1"

Length:

6.1"

Weight (Approximate):

1.04 lb

Environmental Conditions

Minimum Operating Temperature:

-22°F (-30°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Features:

Day/Night
Built-in IR LED
Wide Dynamic Range
Removable IR Cut-off Filter
White Balance
Back Light Compensation (BLC)
Auto Gain Control
2D Digital Noise Reduction (2DNR)
3D Digital Noise Reduction
Privacy Masking
Tamper Detection
Cross Line Detection
Face Detection
Motion Detection
HTTPS Encryption
Password Protection
SD Card Local Storage

Indoor/Outdoor:

Outdoor

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP68

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 46171610
