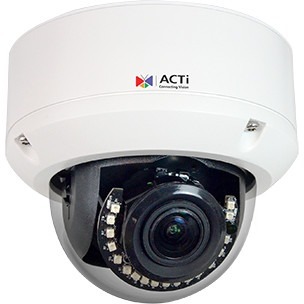

ACTi A86 Security Camera

ACTi - ACTi A86 5 Megapixel Network Camera - Dome - 98.43 ft Night Vision - H.265, H.264, MJPEG - 2616 x 1964 - 5x Optical - CMOS - Surface Mount, Pendant Mount, Wall Mount, Gooseneck, Junction Box Mount, Flush Mount

5 Megapixel
Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
5x Zoom Lens with f2.7-13.5/F1.4-F3.3, Auto focus (for installation)
Extreme WDR
H.265 Compression
Wide Angle
Event trigger, response and notification

Need a different version? See all ACTi Parts Accessories

Chat Now for Qty Discount

Add to Quote

$1,402.71

Overview

ACTi Parts Accessory Model Overview

Products and parts from ACTi.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision Distance:

98.43 ft

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color
Monochrome

Effective Camera Resolution:

5 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

2616 x 1964

Lens

Minimum Focal Length:

2.70 mm

Maximum Focal Length:

13.50 mm

Optical Zoom:

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Interfaces/Ports

Network (RJ-45):

Yes

Physical Characteristics

Mount Type:

Surface Mount
Pendant Mount
Wall Mount
Gooseneck
Junction Box Mount
Flush Mount

Form Factor:

Dome

Height:

5.1"

Diameter:

5.5"

Environmental Conditions

Minimum Operating Temperature:

-40°F (-40°C)

Maximum Operating Temperature:

122°F (50°C)

Operating Humidity:

80%

Miscellaneous

Indoor/Outdoor:

Outdoor

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP66

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 46171610

Reviews

Q&A

Get help from a Barcoding Expert!

The ACTi A86 Security Camera is also known as ACI-A86
