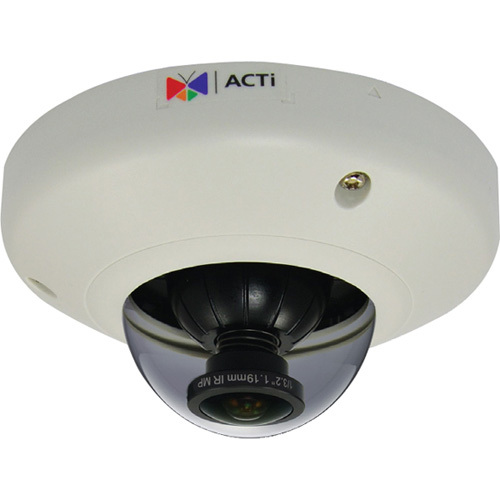

ACTi E96 Security Camera

ACTi - ACTi E96 5 Megapixel Network Camera - Dome - H.264, MJPEG - 2592 x 1944 - CMOS - Fast Ethernet - Surface Mount, Gang Box Mount

Network camera - Helps achieve high-quality video results
Up to 2592 x 1944 video resolution
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
1.19 mm maximum focal length provides incredible detail and how effective is your network camera
f/2 maximum aperture for better light absorption and dependable, better-quality results
Fixed Focus focus mode for clarity and precision to ensure maximum productivity
Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
Surface Mount mount type allows convenient, easy usage with maximum efficiency
Digital Noise Reduction feature for maximum efficiency and convenience
Wired connectivity technology helps you always stay connected to your network camera for maximum productivity

Need a different version? See all ACTi Parts Accessories

Chat Now for Qty Discount

Add to Quote

$503.17

Overview

ACTi Parts Accessory Model Overview

Products and parts from ACTi.

Detailed Specs

Display & Graphics

Image Sensor Type:

CMOS

Image Sensor Size:

1/3.2"

White Balance Modes:

Hold
Manual
Auto

Color Supported:

Color

Field of View:

180°

Effective Camera Resolution:

5 Megapixel

Video

Video Formats:

H.264
MJPEG

Maximum Video Resolution:

2592 x 1944

Maximum Frame Rate:

15 fps

Lens

Lens Type:

Fixed

Maximum Focal Length:

1.19 mm

Lens Included:

Yes

Lens Mount Type:

Board Mount

Maximum Aperture:

f/2

Focus Modes:

Fixed Focus

Exposure

Shortest Shutter Speed:

1/10000 Second

Longest Shutter Speed:

1/5 Second

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

TCP
UDP
IPv6
HTTPS
HTTP
DHCP
PPPoE
RTP
RTSP
DDNS
DNS
NTP
ICMP
ARP
IGMP
SMTP
FTP
UPnP
SNMP
Bonjour

Controls/Indicators

Status Indicators:

Power LED

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Maximum Power Consumption:

2.91 W

Physical Characteristics

Mount Type:

Surface Mount
Gang Box Mount

Form Factor:

Dome

Durability:

Vandal Resistant

Height:

2.3"

Diameter:

4.3"

Weight (Approximate):

7.80 oz

Miscellaneous

Features:

Digital Noise Reduction
Motion Detection
SD Card Local Storage

Indoor/Outdoor:

Indoor

System Requirements:

Microsoft Internet Explorer 8.0 or newer

Certifications & Standards:

FCC (Part15 Subpart B Class B)
CE (EN 55022 Class B, EN 55024)
IK08

Impact Protection Rating:

IK08

Security Features:

Anonymous Login
IP address Fltering
HTTPS Encryption
Password Protected user Levels
IEEE 802.1X Network Access Control

Platform Supported:

Item Numbers

GTIN: 0095258532106, 0758149316994, 0943309525099, 4718201796955

UPC: 095258532106, 758149316994, 888034003118, 943309525099

EAN: 0095258532106, 0758149316994, 0943309525099, 4718201796955

UNSPSC: 46171610
