ACTi I96 Products

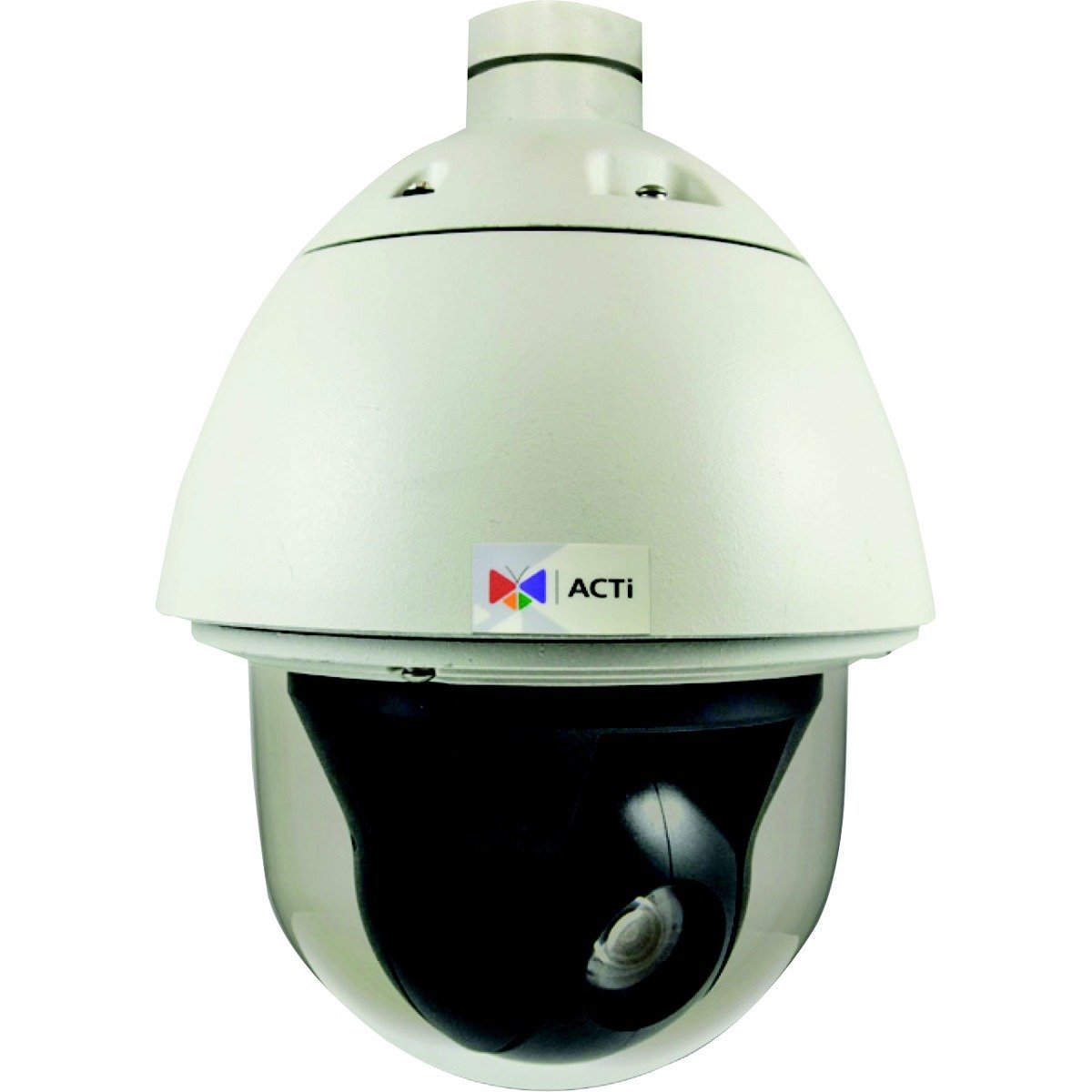

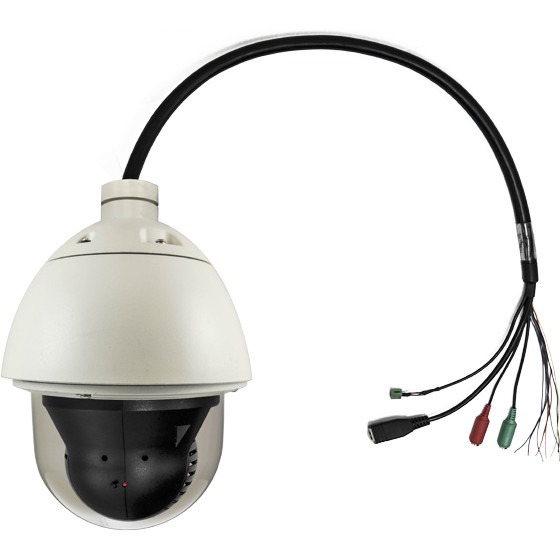

ACTi - ACTi I96 2 Megapixel Network Camera - Dome - MJPEG, H.264 - 1920 x 1080 - 30x Optical - CMOS - Fast Ethernet - Corner Mount, Pole Mount, Pendant Mount, Wall Mount

Up to 1920 x 1080 resolution for surveillance in real-time
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
129 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
f/5 maximum aperture for productive capturing according to focal length and lighting conditions
30x optical zoom for desired image clarity and maximum capturing convenience
16x digital zoom provides automatic magnification without compromising the image quality
Automatic focus mode for better reliance and sharp, detailed results
Zoom lens type allows you to conveniently change the angle of view quickly and without changing lenses
Corner Mount mount type ensures optimal results and maximum convenience
Day/Night feature for maximum efficiency and convenience

Need a different version? See all ACTi Parts Accessories

Chat Now for Qty Discount

Add to Quote

$4,199.09

Overview

ACTi Parts Accessory Model Overview

Products and parts from ACTi.

Detailed Specs

Display & Graphics

Image Sensor Type:

CMOS

Image Sensor Size:

1/2.8"

White Balance Modes:

Auto
Manual
Hold

Color Supported:

Color
Monochrome

Field of View:

2.61° to 66.4°

Effective Camera Resolution:

2 Megapixel

Video

Video Formats:

MJPEG
H.264

Maximum Video Resolution:

1920 x 1080

Maximum Frame Rate:

30 fps

Audio

Audio Formats:

PCM

Lens

Lens Type:

Zoom

Minimum Focal Length:

4.30 mm

Maximum Focal Length:

129 mm

Lens Included:

Yes

Minimum Aperture:

f/1.6

Maximum Aperture:

f/5

Optical Zoom:

30x

Digital Zoom:

16x

Focus Modes:

Automatic

Exposure

Shortest Shutter Speed:

1/10000 Second

Longest Shutter Speed:

1/5 Second

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

PELCO-D
PELCO-P
TCP
UDP
HTTP
HTTPS
DHCP
PPPoE
RTP
RTSP
IPv6
DNS
DDNS
NTP
ICMP
ARP
IGMP
SMTP
FTP
UPnP
SNMP
Bonjour
VISCA

Interfaces/Ports

Network (RJ-45):

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Power Description

Maximum Power Consumption:

31.50 W

Physical Characteristics

Mount Type:

Corner Mount
Pole Mount
Pendant Mount
Wall Mount

Form Factor:

Dome

Durability:

Weather Proof
Vandal Proof

Height:

10.9"

Diameter:

7.9"

Weight (Approximate):

5.51 lb

Miscellaneous

Features:

Day/Night
2D Digital Noise Reduction (2DNR)
3D Digital Noise Reduction
Motion Detection
SD Card Local Storage
Built-in Heater
Built-in Fan

Indoor/Outdoor:

Outdoor

System Requirements:

Browser:

Internet Explorer 8.0 or newer
Safari

Certifications & Standards:

IP66
IK10
IK09
CE (EN 55022 Class B, EN 55024)
FCC (Part15 Subpart B Class B)
IP67
NEMA 4X

Impact Protection Rating:

IK09
IK10

Ingress Protection Rating:

IP67
IP66

Security Features:

IP Address Filtering
HTTPS Encryption
Password Protected User Levels
Anonymous Login
IEEE 802.1X Network Access Control

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0097405778061, 0633556727284, 0888034003910, 4718201797587

UPC: 097405778061, 633556727284, 888034003910

EAN: 0097405778061, 0633556727284, 0888034003910, 4718201797587

UNSPSC: 46171610
