Aiphone AN-8011MS Accessory

The Aiphone AN-8011MS Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Aiphone - Hands Free Master Station

Need a different version? See all Aiphone Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Aiphone Parts Accessory Model Overview

Products and parts from Aiphone.

Aiphone AN-8011MS Accessory Overview

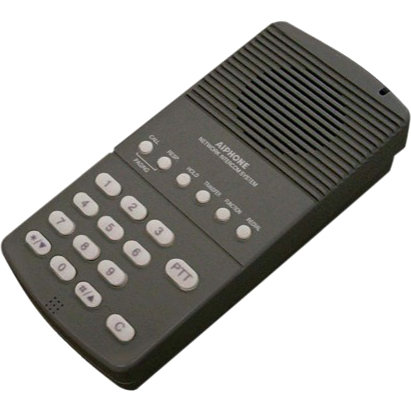

The Hands-Free Master Station shall connect to the exchange mainframe via one unshielded twisted pair (UTP) cable. The Hands-Free Master Station shall be capable of hands-free full-duplex communication with all other intercom stations through a built-in speaker and condenser microphone. The Hands-Free Master Station shall be equipped with an in-use LED, 20 operating keys, a modular line jack and a 2.25" speaker. Microphone sensitivity, speaker volume, and calling tone volume shall be software-adjustable. Speaker volume shall also be adjustable at the station. The station shall be capable of being desk or wall mounted and shall be constructed of Black ABS resin, with a dust proof rubber key pad. The Hands-Free Master Station shall be the Aiphone Corporation AN-8011MS. The optional wall-mount bracket shall be the Aiphone Corporation YC-290.

Detailed Specs

Physical Characteristics

Color:

Black

Material:

Acrylonitrile Butadiene Styrene (ABS)

Form Factor:

Desktop
Wall Mount

Weight (Approximate):

9.26 lb

Miscellaneous

Additional Information:

Single exchange can connect any combination of door and master stations up to sixteen units
Up to 80 exchanges can be included on a system for a total of 1280 communication devices
Efficient method of communicating over local or wide area network using existing infrastructure
Full compliment of PC Programmable functions and features including Redial, Recall, Auto-dialing, Group Call, Group Searching, Absence transfer, Call Forwarding, Call Hold, and Scan Monitor
Automatic echo canceller prevents clipping and ghosting during hands-free simultaneous conversation
Stations incorporate a built-in speaker to allow paging through the units
Paging through overhead speaker network using an external amplifier with total broadcast capabilities of up to 160-zones with paging and all-call paging
Total system maintenance can be performed off-site using a personal computer with provided software
7kHz communication frequency provides better clarity than most telephones
System occupies a very low amount of bandwidth

Warranty

Limited Warranty:

2 Year

Item Numbers

UNSPSC: 43221525
