Aiphone JP-4MED Telecommunication Equipment

Aiphone - Aiphone JP-4MED Video Door Phone - 7" LCDFull-duplex

7" Touchscreen LCD
Hands-free (VOX) or handset (duplex) communication
Selective door release controls
Room to room calling
Monitor door station with the touch of a button
Hearing aid T-Mode compatibility
Digital pan, tilt, and zoom
Brightness control
Connects to JP-4MED or JP-8Z with a single Cat-5e cable
Internal / Built-In picture memory: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting

Need a different version? See all Aiphone Parts Accessories

Chat Now for Qty Discount

Add to Quote

$2,004.24

In Stock

Aiphone JP-4MED Telecommunication Equipment

Overview

Aiphone Parts Accessory Model Overview

Products and parts from Aiphone.

Aiphone JP-4MED Telecommunication Equipment Overview

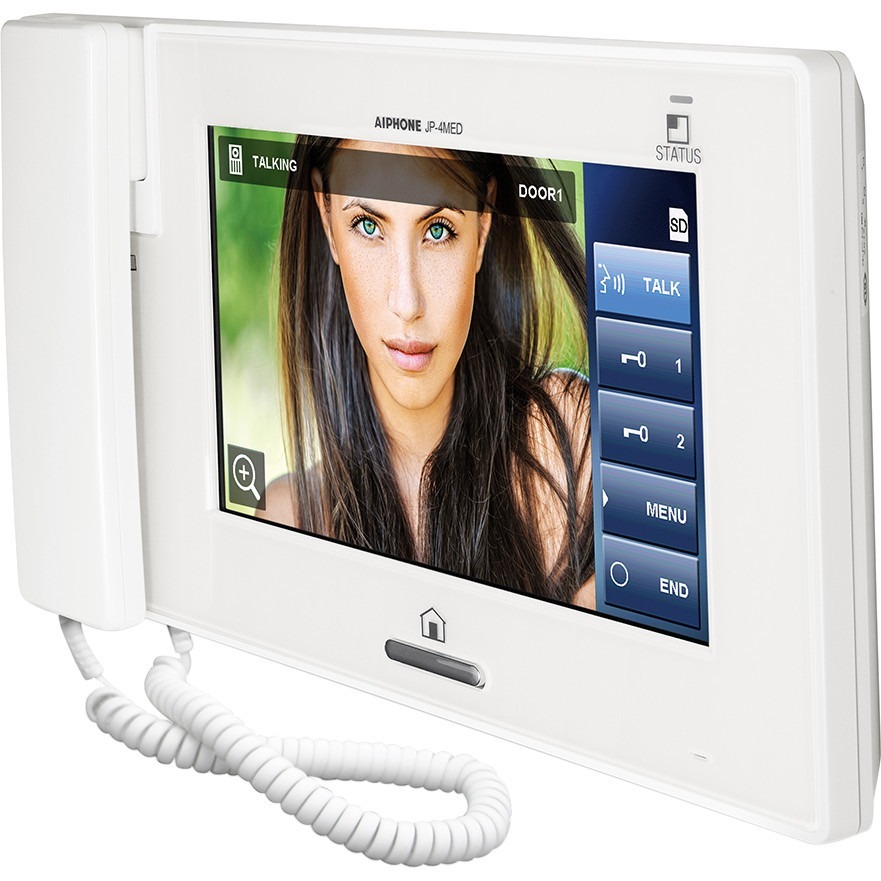

The JP-4MED is a video master station with a 7" color touchscreen LCD. The JP-4MED offers handset (duplex) and hands-free (VOX) communication. This unit will support up to 4 door stations and 7 sub masters. All inside stations are equipped with a door release button for the user to allow visitor entry. The JP-4MED is also equipped with PTZ and brightness controls, giving the user control of the door station camera angle and camera lighting for better visibility. Picture memory records up to 20 calls to internal memory and 1,000 calls to a removable SD / SDHC card (not included). The JP-4MED connects to door stations using 18AWG, 2 conductor cable and connects to sub master stations using CAT-5e or CAT-6 cable.

Detailed Specs

Technical Information

Communication Mode:

Full-duplex

Maximum Wiring Distance:

330 ft

Display & Graphics

Screen Size:

Display Screen Type:

TFT LCD

Touchscreen:

Yes

Power Description

Input Voltage:

24 V DC

Physical Characteristics

Product Color:

White

Height:

5.7"

Width:

10"

Depth:

1.2"

Weight (Approximate):

1.72 lb

Miscellaneous

Application/Usage:

Door Entry

Additional Information:

Door Release: N/O dry contact, 24V AC/DC, 500mA - use EL-12S (use RY-24L for larger contact rating and use RY-3DL for 3~4 doors)

Country of Origin:

Thailand

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0790143596156

UPC: 790143596156

EAN: 0790143596156

UNSPSC: 43191513

Reviews

Q&A

Questions? Get help from a
Printer Expert!

The Aiphone JP-4MED Telecommunication Equipment is also known as AIP-JP4MED
