Protection Type:
- Fuse
- Short Circuit
- Thermal Overload
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

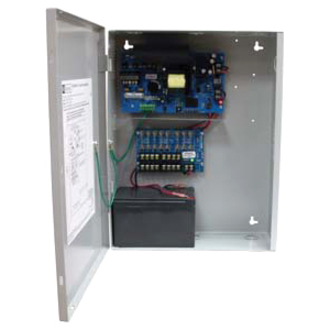

Altronix AL1012ULXPD8 Power Device Overview
Model AL1012ULXPD8 power supply/charger converts a 115VAC 60Hz input, to 10 amp of continuous supply current @ 12VDC distributed via eight (8) fuse protected non power limited outputs. Model AL1012ULXPD8CB is a PTC protected version of this unit.
Technical Information
Power Description
Number of +12V Rails:
8
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
12 V DC @ 10 A
Input Current:
1.9 A @ 110V
Physical Characteristics
Form Factor:
Wall Mount
Height:
15.5"
Width:
12.2"
Depth:
4.5"
Miscellaneous
Environmentally Friendly:
Yes
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0397336181962, 0782239936342
UPC:
397336181962, 782239936342
EAN:
0397336181962, 0782239936342
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL1012ULXPD8 Power Device is also known as
ALT-AL1012ULXPD8
