Protection Type:
- Short Circuit
- Thermal Overload
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

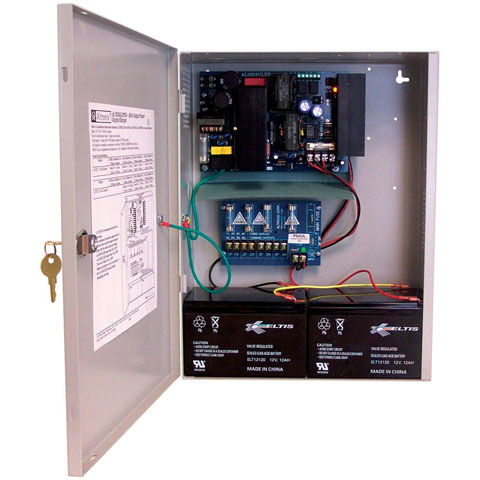

Altronix AL1024ULXPD4 Power Device Overview
Model AL1024ULXPD4 power supply/charger converts a 115VAC 60Hz input, to 24VDC @ 10 amp supply current for Access Control application, 24VDC @ 8 amp supply current with 10 amp during alarm for Fire Alarm applications distributed via four (4) fuse protected non power limited outputs. Model AL1024ULXPD4CB is a PTC protected version of this unit.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
24 V DC @ 10 A
Input Current:
4.4 A @ 110V
Physical Characteristics
Form Factor:
Wall Mount
Height:
15.5"
Width:
12.2"
Depth:
4.5"
Miscellaneous
Compatibility:
- Fire Protective Signaling Systems
- Access Control Systems
Environmentally Friendly:
Yes
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239937707
UPC:
782239937707
EAN:
0782239937707
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL1024ULXPD4 Power Device is also known as
ALT-AL1024ULXPD4
