Protection Type:
- Short Circuit
- Thermal Overload
Altronix ALTV2416 Accessory Model Overview

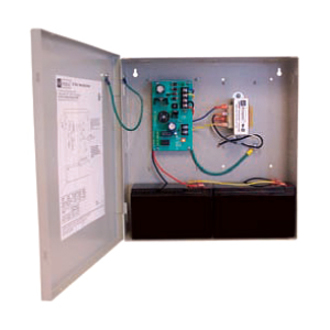

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Technical Information
Power Description
Number of +12V Rails:
1
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC @ 1.75 A
- 24 V DC @ 1.75 A
Input Current:
600 mA @ 110V
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
8.50 lb
Miscellaneous
Compatibility:
- Access Control System
- Signal Equipment
Environmentally Friendly:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239933433
UPC:
782239933433
EAN:
0782239933433
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL176ULX Power Device is also known as
ALT-AL176ULX
