Protection Type:
- Fuse
- Short Circuit
- Thermal Overload
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

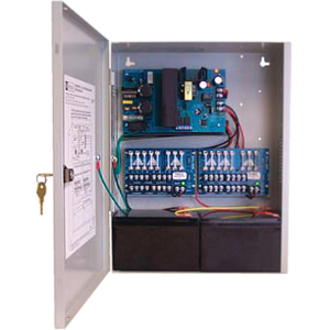

Altronix AL400ULXPD16CB Power Device Overview
Model AL400ULXPD16CB power supply/charger converts a 115VAC 60Hz input, to a 4 amp of continuous supply current @ 12VDC or 3 amp of continuous supply current @ 24VDC distributed via sixteen (16) PTC protected Class 2 Rated power limited outputs. Model AL400ULXPD16 is a fuse protected version of this unit.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC @ 4 A
- 24 V DC @ 3 A
Input Current:
1.45 A @ 110V
Physical Characteristics
Height:
15.5"
Width:
12.2"
Depth:
4.5"
Weight (Approximate):
10.30 lb
Miscellaneous
Environmentally Friendly:
Yes
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239937165
UPC:
782239937165
EAN:
0782239937165
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL400ULXPD16CB Power Device is also known as
ALT-AL400ULXPD16CB
