Protection Type:
- Short Circuit
- Thermal Overload
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

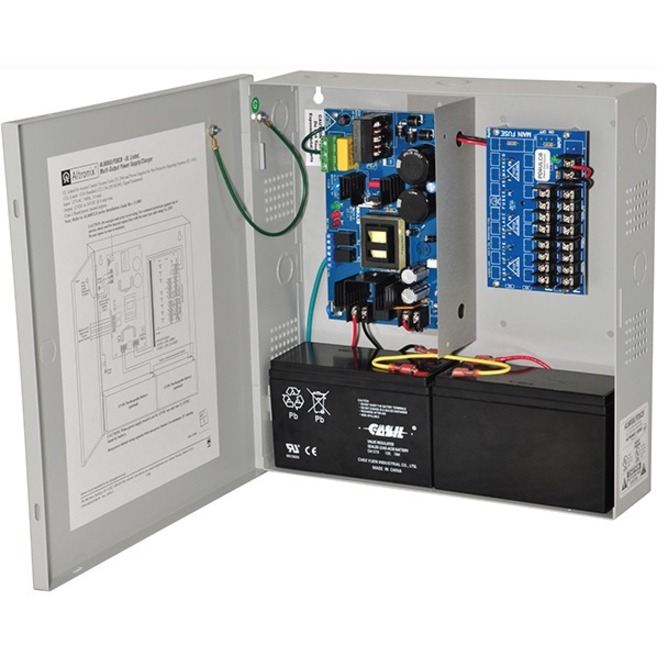

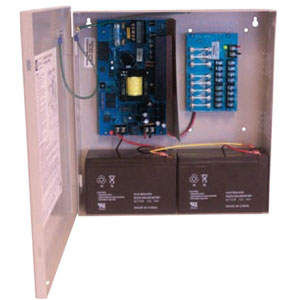

Altronix AL600ULPD8CB Power Device Overview
Model AL600ULPD8CB power supply/charger converts a 115VAC 60Hz input, to a 6 amp of continuous supply current @ 12VDC or 24VDC distributed via eight (8) PTC protected Class 2 Rated outputs. Model AL600ULPD8 is a fuse protected version of this unit.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Input Current:
1.9 A @ 110V
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
7.90 lb
Miscellaneous
Environmentally Friendly:
Yes
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239937097, 4703876699199
UPC:
782239937097
EAN:
0782239937097, 4703876699199
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL600ULPD8CB Power Device is also known as
ALT-AL600ULPD8CB
