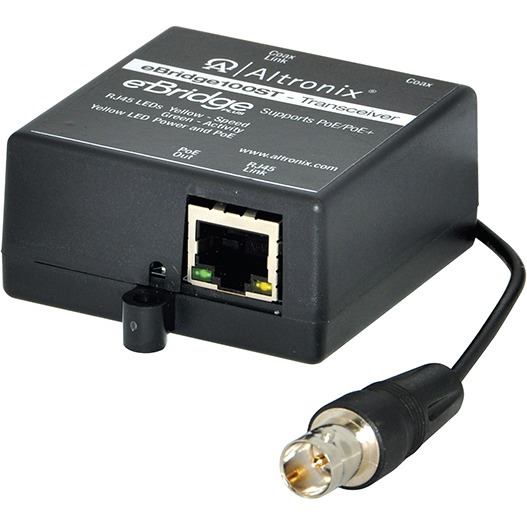

Altronix EBRIDGE100ST Accessory

Altronix  -  Altronix EoC and PoE/PoE+ Transceiver - Network (RJ-45) - 1x PoE+ (RJ-45) Ports - Fast Ethernet - 10/100Base-TX
  • Ethernet over coax/CAT5e Mini Transceiver.
  • Transmits IP video/data over coax up to 300m or CAT5e up to 500m.
  • 100Mbps full duplex.
  • Supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at).
  • CE Approved.
Read More

Need a different version? See all Altronix Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$202.02
Altronix EBRIDGE100ST Accessory
Altronix EBRIDGE100ST Accessory
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix EBRIDGE100ST Accessory Overview

eBridge100ST EoC transceiver transmits data at 100Mbps, Full Duplex over Coax cable to a paired eBridge receiver and provides power in a PoE+ compliant format to an enabled device/camera. The eBridge receiver is available in various options (see compatibility list below/Altronix.com) and is powered by an external midspan, such as the Altronix Netway series. The receiver passes PoE+ power over the same coax cable to the eBridge100ST transceiver, which, in turn, passes this power to an enabled IP camera/device. These plug and play units facilitate cost-effective solutions for IP devices. They can be installed at distances greater than 300m. They provide a simple way to replace legacy analog products with new IP devices over existing coax. eBridge100ST is compatible with the following Altronix receivers: eBridge100RM, eBridge400PCRM, eBridge800PCRM or eBridge1600PCRM.

Interfaces/Ports
Total Number of Ports:
1
Network (RJ-45):
Yes
DVI:
No
USB:
No
Management Port:
No
Number of PoE+ (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
Twisted Pair
Maximum Distance Supported:
1640.42 ft
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
Power Description
Power Source:
PoE+
Physical Characteristics
Height:
1.1"
Width:
2.3"
Depth:
2.6"
Weight (Approximate):
3.52 oz
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239953400
UPC: 782239953400
EAN: 0782239953400
UNSPSC: 43201553
