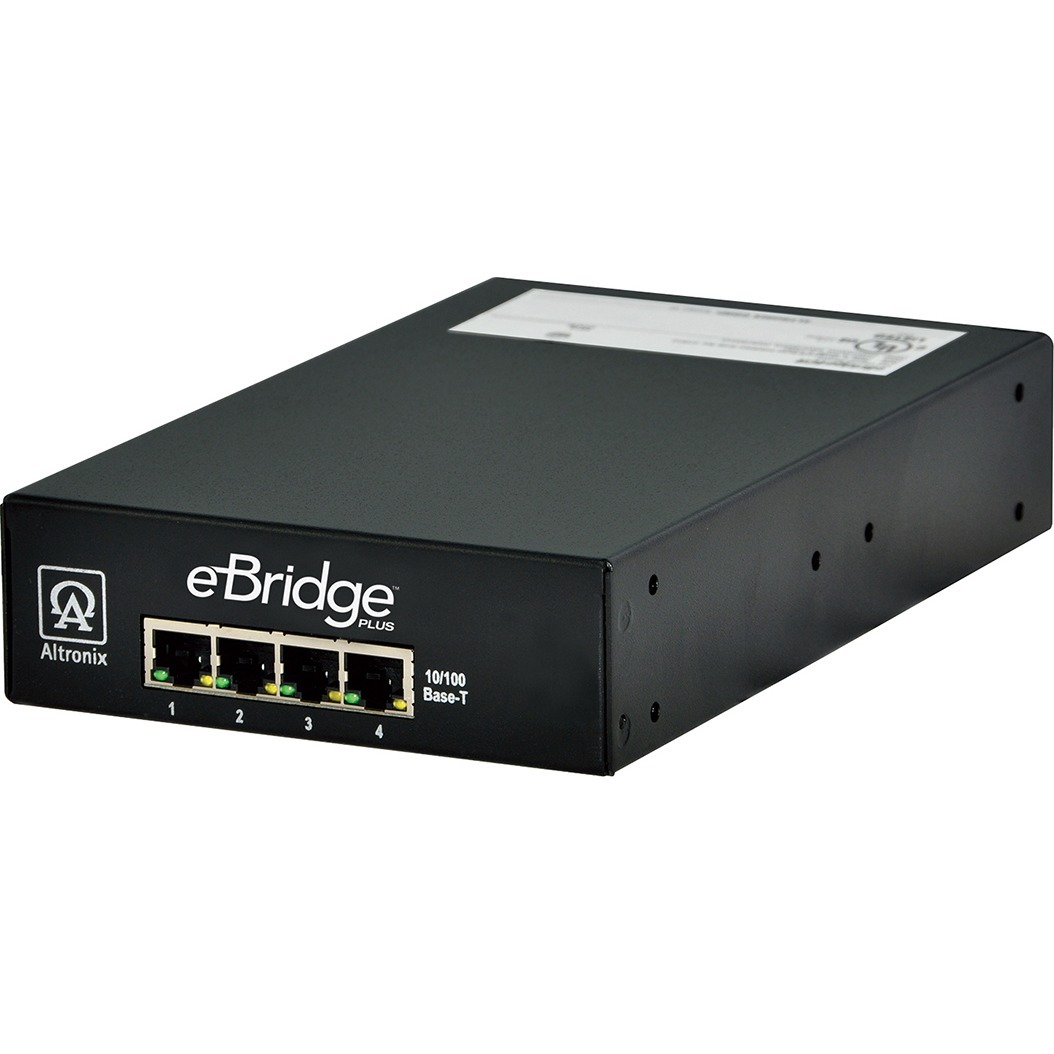

Altronix EBRIDGE4PCRM Accessory

Altronix - 4-Port Ethernet over Coax Receiver Tr

IEEE 802.3af (15W) and IEEE 802.3at (30W).
25Mbps of data at distances up to 500m over Coax.
Eliminates the costs and labor associated with installing new network cabling.
Retrofit digital IP cameras in an analog CCTV installation.
Auto detection and protection of legacy non-PoE cameras/devices.
Works with Megapixel, HD720, HD1080 & VGA (SD) cameras.
Extends Network link distance in an industrial environment.
Upgrades deployed CCTV Coax to a digital network for Retail, Casinos, Airports, Schools, Hospitals, etc.

Need a different version? See all Altronix Parts Accessories

Chat Now for Qty Discount

Add to Quote

$797.82

Overview

Altronix Parts Accessory Model Overview

Products and parts from Altronix.

Altronix EBRIDGE4PCRM Accessory Overview

4-Port Ethernet over coax Receiver. Transmits IP video/data over coax up to 500m @ 25mbps full duplex and supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at). Compatible with eBridge1PCT and eBridge1PCTX transceivers. UL/cUL Listed (UL60950-1). CE Approved.

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Number of Input Devices Supported:

Maximum Operating Distance:

1640.42 ft

Interfaces/Ports

Network (RJ-45):

Yes

Number of Network (RJ-45) Ports:

Media & Performance

Media Type Supported:

Twisted Pair
Coaxial

Physical Characteristics

Receiver Height:

5.50"

Receiver Width:

12.50"

Receiver Depth:

20.25"

Receiver Weight (Approximate):

1.70 lb

Miscellaneous

Country of Origin:

United States

NDAA Compliant:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0782239953011

UPC: 782239953011

EAN: 0782239953011
