Altronix EBRIDGE4SK Power Device

Altronix - Altronix IP and PoE+ over Coax Solution

IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
Eliminates the costs and labor associated with installing new network cabling.
Retrofit digital IP cameras in an analog CCTV installation.
Auto detection and protection of legacy non-PoE cameras/devices.
Works with Megapixel, HD720, and HD1080 cameras.
Extends Network link distance in an industrial environment.
Upgrades deployed CCTV Coax to a digital network for Retail, Casinos, Airports, Schools, Hospitals, etc.
UL Listed in the U.S. and Canada.
CE Approved.
C-Tick compliant.

Need a different version? See all Altronix Parts Accessories

Chat Now for Qty Discount

Add to Quote

$702.23

Overview

Altronix Parts Accessory Model Overview

Products and parts from Altronix.

Altronix EBRIDGE4SK Power Device Overview

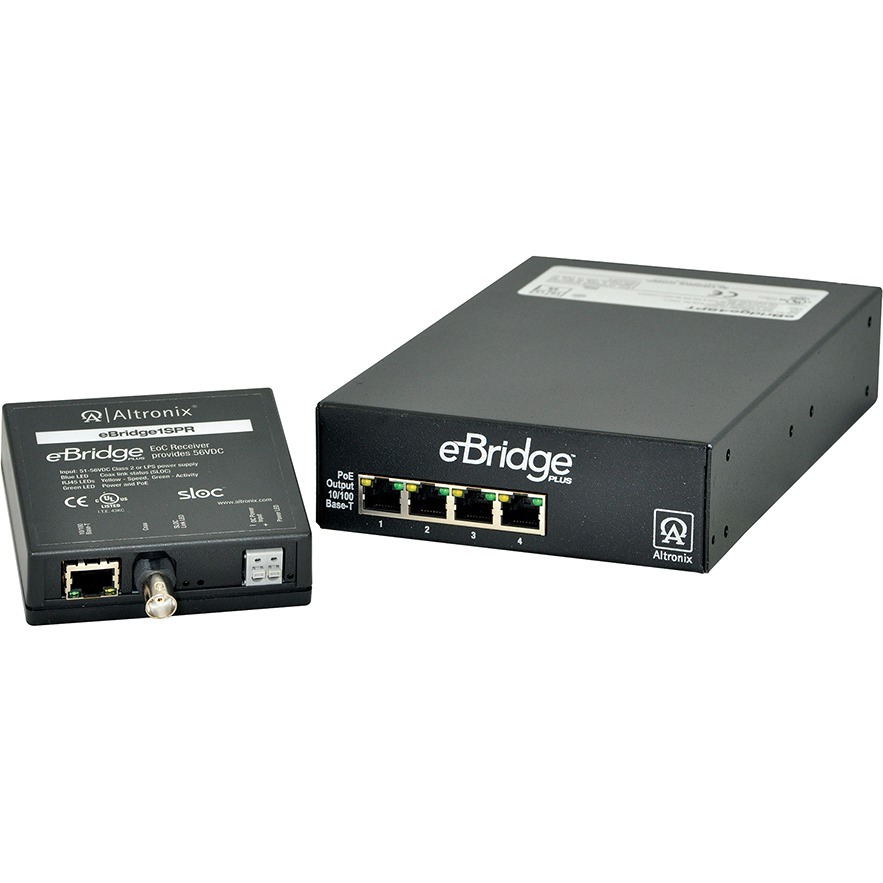

Altronix eBridge4SK kit consists of eBridge100SPR and eBridge4SPT Coax to CAT-5 Ethernet adapters/media converters that deliver data and power over coax cable. The paired set enables fast 10/100 Base-T Ethernet digital communication. eBridge4SPT allows to upgrade the existing infrastructure by replacing a single analog device with up to four (4) PoE/PoE+ devices. eBridge100SPR passes data and sends power over the coax to the eBridge4SPT. Data transmission and power over the Coax are possible up to 300m. Maximum range from headend to the PoE camera/device is 500m, taking into consideration that up to 100m of structured cable may be deployed at each end. eBridge4SK enables cost-effective system upgrades and eliminates the costs and labor associated with installing new network cabling.

Detailed Specs

Interfaces/Ports

Network (RJ-45):

Yes

Media & Performance

Media Type Supported:

Coaxial
Twisted Pair

Network & Communication

Ethernet Technology:

Fast Ethernet

Network Technology:

10/100Base-T

Miscellaneous

Package Contents:

1 x eBridge100SPR EoC Single Port Receiver

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

NDAA Compliant:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

UNSPSC: 43201553
