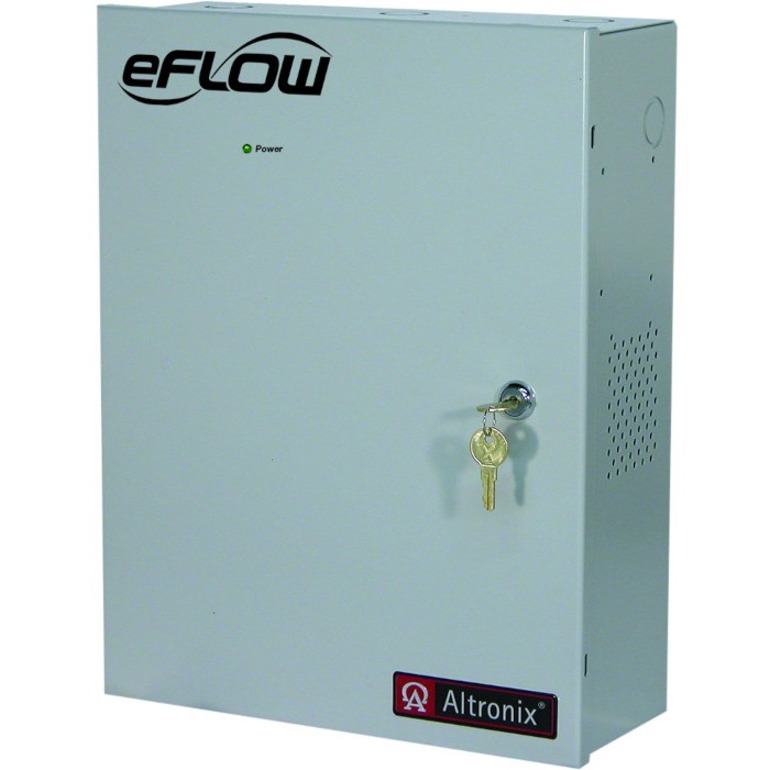

Altronix EFLOW104NK8 Accessory

Altronix - 24 2VDC A/8FUSE OUT/115

Unit provides 12VDC or 5VDC up to 6A and/or 24VDC up to 10A (240W total power).
Additional aux. Class 2 power-limited output rated @ 1A.
Short circuit and overvoltage protection.
Supervision: - AC Fail - Battery Fail and Battery Presence - Low power shutdown.
Fire alarm disconnect.
Bi-colored LEDs provide visual verification of voltage on each output.
Stackable sub-assemblies save valuable space.
Built-in charger for sealed lead acid or gel type batteries.
Instantaneous transfer to stand-by batteries.
Eight (8) independently controlled outputs.

Need a different version? See all Altronix Parts Accessories

Chat Now for Qty Discount

Add to Quote

$513.05

Overview

Altronix Parts Accessory Model Overview

Products and parts from Altronix.

Altronix EFLOW104NK8 Accessory Overview

Altronix eFlow104NK8D converts a 120VAC 60Hz input into eight (8) PTC protected powerlimited 12VDC or 24VDC outputs with a total of 10A max. Unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Dual input design allows power to be steered from two (2) factory installed independent low voltage 12 or 24VDC Altronix power supplies to eight (8) independently controlled PTC protected outputs.

Detailed Specs

Power Description

Input Voltage:

120 V AC

Output Voltage:

24 V DC @ 10 A

Output Current:

10 A

Physical Characteristics

Form Factor:

Enclosure

Height:

15.5"

Width:

12"

Depth:

4.5"

Weight (Approximate):

9.40 lb

Miscellaneous

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

Lifetime

Item Numbers

UNSPSC: 39121004
