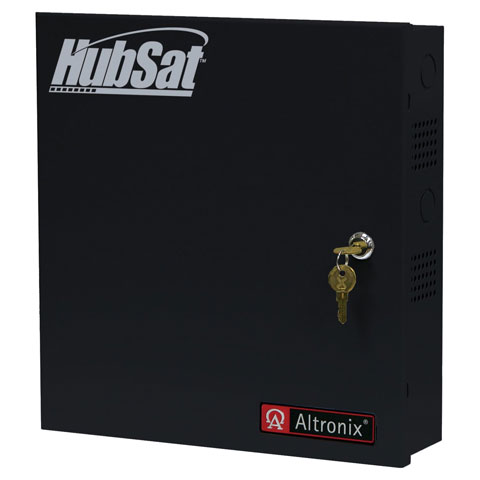

Altronix HUBSAT82D Power Device

The Altronix HUBSAT82D Power Device has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Altronix ALTV2416 - Altronix HubSat Video Console/Extender - 8 Input Device - 8 Output Device - 750 ft Range - 8 x Network (RJ-45) - Serial Port - Twisted Pair - Category 5 - Wall Mountable

Need a different version? See all Altronix ALTV2416 Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Altronix ALTV2416 Accessory Model Overview

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

Altronix HUBSAT82D Power Device Overview

Altronix HubSat82D Passive UTP Transceiver Hub w/Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 8 camera channels in a wall mount enclosure. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC fixed or PTZ cameras when utilizing Altronix HubWayAv Video Balun/Combiners. In addition, the unit features individually selectable 24VAC or 28VAC fuse protected outputs with surge suppression. Optionally, the HubSat8/8D can be used as an accessory module to transmit video from up to 8 cameras over a single CAT-5 or higher structured cable back to the HubWay, HubWayLD or HubWayLDH Passive UTP Transceiver Hubs. In addition, the HubSat8/8D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Number of Input Devices Supported:

Number of Output Devices Supported:

Maximum Operating Distance:

750 ft

Interfaces/Ports

Network (RJ-45):

Yes

Serial Port:

Yes

Number of Network (RJ-45) Ports:

Media & Performance

Media Type Supported:

Twisted Pair

Twisted Pair Cable Standard:

Category 5

Power Description

Input Voltage:

115 V AC

Physical Characteristics

Transmitter Height:

13.50"

Transmitter Width:

13"

Transmitter Depth:

3.25"

Form Factor:

Wall Mountable

Miscellaneous

Package Contents:

HubSat Video Console/Extender
8 x Video Balun/Combiners

Certifications & Standards:

UL 2044
CUL Listed - CSA Standard C22.2 No.1-04

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0782239942541

UPC: 782239942541

EAN: 0782239942541

UNSPSC: 45111815
