Altronix HUBWAYLD162CD Accessory

The Altronix HUBWAYLD162CD Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Altronix ALTV2416 - Active UTP Transceiver Hub (with 16 Channels)

Need a different version? See all Altronix ALTV2416 Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Altronix ALTV2416 Accessory Model Overview

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

Altronix HUBWAYLD162CD Accessory Overview

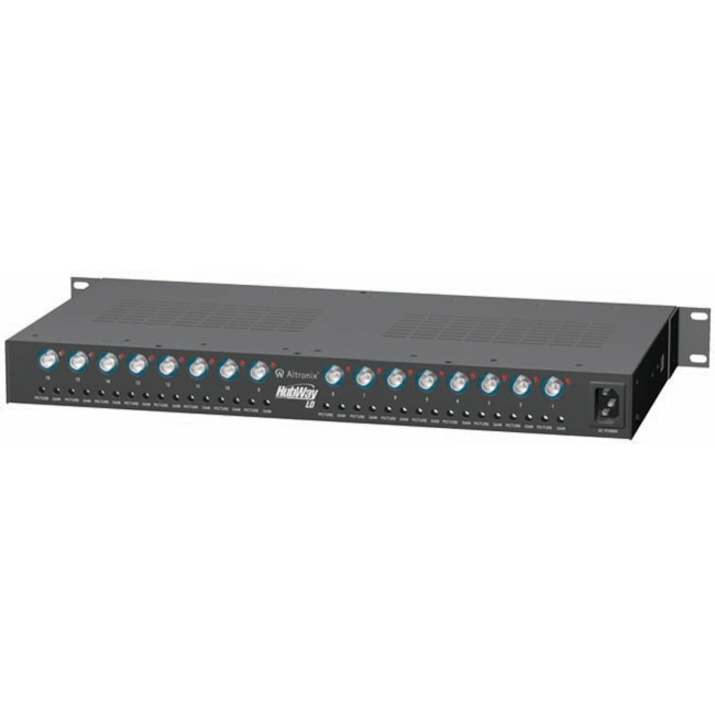

Altronix HubWayLD162CD Active UTP Transceiver Hub w/Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 16 camera channels in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 3000 ft. max. per channel.

Detailed Specs

Miscellaneous

Additional Information:

Individual selectable 24VAC or 28VAC power outputs with OFF position
Unit provides up to 1 amp max. per channel not to exceed a total of 10 amp (300VA) maximum current
PTC protected outputs
PTCs are rated 1 amp per channel
Class 2 Rated power limited outputs
Surge suppression
Picture and Gain control
Primary fuse (internal) is rated at 5 amp/250V
Input 115VAC 60Hz, 3 amp
Rack, wall or shelf mount

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0782239945245

UPC: 782239945245

EAN: 0782239945245

UNSPSC: 43222619
