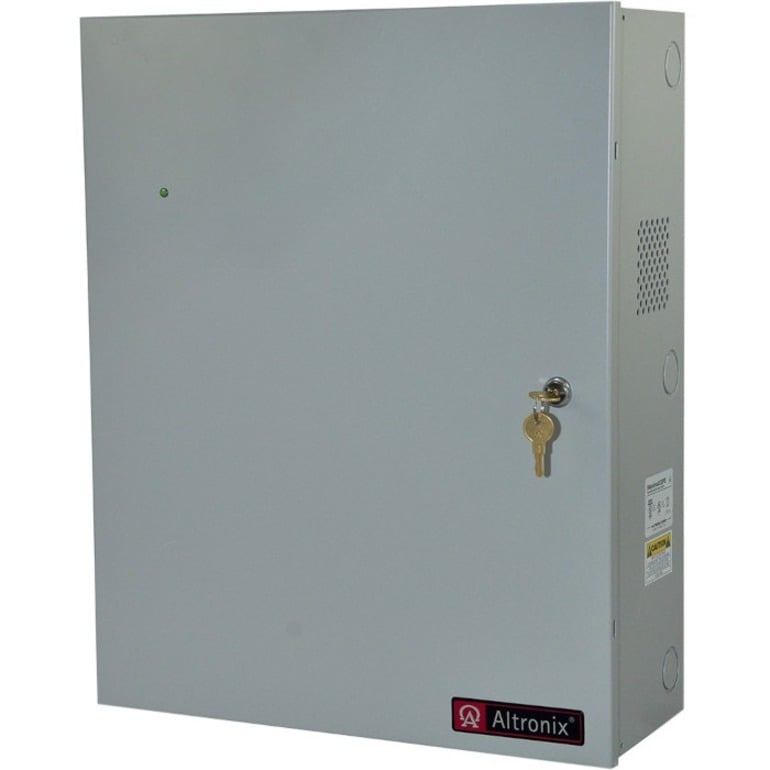

Altronix MAXFIT7FE Security System Products

Altronix - Altronix MaxFit7FE Single Power supply Expandable Power Systems provides system designers and installers with optimum power choices and the highest levels of versatility in a more compact and economical enclosure. Unit provides 24VDC via one (1) single output power supply/charger. Includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.

Filtered and electronically regulated outputs.
Additional aux. Class 2 power-limited output rated @ 1A.
Thermal and short circuit protection with auto reset.
Supervision: - AC Fail - Low Battery and Battery Presence - Low power shutdown.
Supervised fire alarm disconnect.
Built-in 30-50% faster charger for sealed lead acid or gel type batteries.
Low power cutoff - protects stand-by batteries from deep discharge.
AC input and DC output LED indicators.
Enclosure accommodates up to four (4) 12VDC/12AH batteries.
Lifetime Warranty / Made in the U.S.A.

Need a different version? See all Altronix Parts Accessories

Chat Now for Qty Discount

Add to Quote

$578.88

Altronix MAXFIT7FE Security System Products

Overview

Altronix Parts Accessory Model Overview

Products and parts from Altronix.

Altronix MAXFIT7FE Security System Products Overview

Altronix MaxFit7FE Single Power Supply Expandable Power Systems provides system designers and installers with optimum power choices and the highest levels of versatility in a more compact and economical enclosure. Unit provides 24VDC via one (1) single output power supply/charger. Includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.

Detailed Specs

Power Description

Input Voltage:

120 V AC

Output Voltage:

24 V DC @ 10 A

Output Current:

10 A

Physical Characteristics

Form Factor:

Enclosure

Height:

20.5"

Width:

16.5"

Depth:

6.3"

Weight (Approximate):

20.60 lb

Miscellaneous

Package Contents:

1 x Enclosure, 20.5"H x 16.5"W x 6.25"D, Grey, 19 Gauge, Indoor
1 x Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board

Environmentally Friendly:

Yes

Country of Origin:

United States

Warranty

Limited Warranty:

Lifetime

Item Numbers

UNSPSC: 39121004

Reviews

Q&A

Get help from a Barcoding Expert!

The Altronix MAXFIT7FE Security System Products is also known as ALT-MAXFIT7FE
