Altronix MAXIMAL3RHD Power Device

Altronix ALTV2416  -  PSU/CHARGER W/ ACCESS POWER CONTROLLERS - 16 PTC OUTPUTS
  • Eight (8) independently controlled PTC protected 12VDC and/or 24VDC outputs.
  • Individually selectable Mag Lock/Strike (Fail-Safe, Fail-Secure) solid state PTC protected outputs.
  • Thermal and short circuit protection with auto reset.-
  • Supervision: AC Fail, Low Battery
  • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the outputs.
  • Fire Alarm disconnect
  • Built-in charger for sealed lead acid or gel type batteries.
  • Instantaneous transfer to stand-by batteries.
Read More

Need a different version? See all Altronix ALTV2416 Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$653.18
Altronix MAXIMAL3RHD Power Device
Altronix MAXIMAL3RHD Power Device
Altronix MAXIMAL3RHD Power Device Altronix MAXIMAL3RHD Power Device
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix MAXIMAL3RHD Power Device Overview

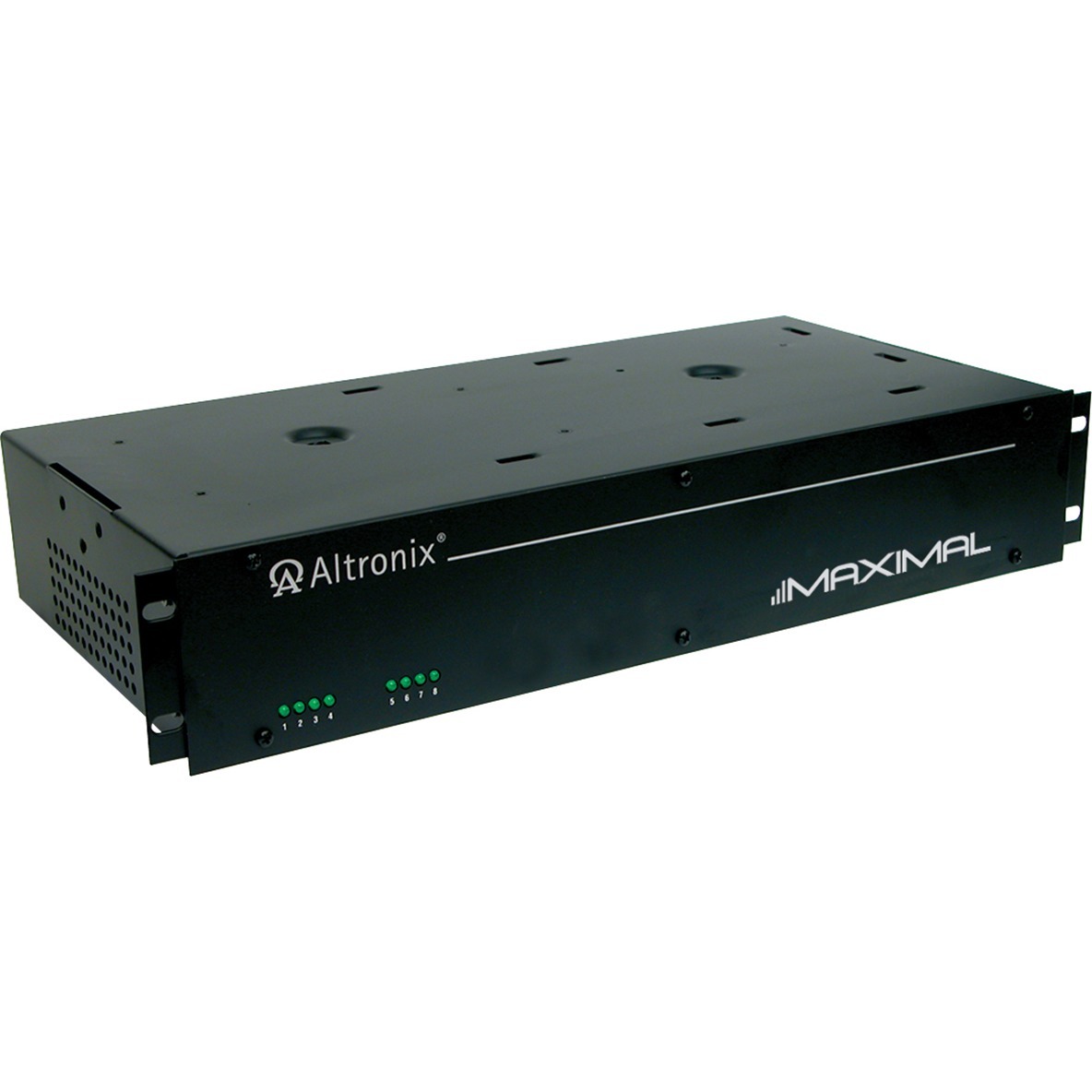

Power Supply/Charger with Access power controllers - 8 PTC outputs are selectable for 12VDC or 24VDC @ 6 amp, outputs are individually selectable for Fail-Safe or Fail-Secure operation, fire alarm disconnect is selectable by output, AC & battery monitoring, 2U EIA 19" Rack Mount Chassis, 115VAC input.

Power Description
Input Voltage:
120 V AC
Output Voltage:
  • 12 V DC
  • 24 V DC
Physical Characteristics
Mount Type:
Rack-mountable
Rack Height:
2U
Height:
7.3"
Width:
12.5"
Length:
20.3"
Weight (Approximate):
12.85 lb
Miscellaneous
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239947539
UPC: 782239947539
EAN: 0782239947539
UNSPSC: 39121017
