Protection Type:
- Short Circuit
- Thermal Overload
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

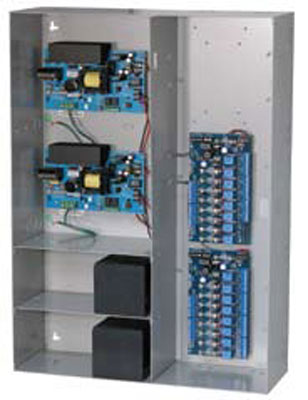

Altronix MAXIMAL55 Accessory Overview
This unit provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control applications.
Technical Information
Power Description
Number of +12V Rails:
2
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
12 V DC @ 10 A
Input Current:
6 A @ 110V
Physical Characteristics
Form Factor:
Wall Mount
Height:
26"
Width:
19"
Depth:
6.3"
Weight (Approximate):
28.60 lb
Miscellaneous
Package Contents:
- MAXIMAL55E Proprietary Power Supply
- Battery Leads
- Key Lock
Compatibility:
- Access Control Applications
- Fire Alarm Applications
Environmentally Friendly:
Yes
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239947584
UPC:
782239947584
EAN:
0782239947584
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix MAXIMAL55 Accessory is also known as
ALT-MAXIMAL55
