Altronix MAXIMAL75 Power Device

Altronix ALTV2416  -  2 PSU/CHARGE W/ ACCESS POWER CONTROLLERS 16 FUSED NON-POWER
  • Sixteen (16) independently controlled outputs.
  • Output options:
  • a) Sixteen (16) Fail-Safe and/or Fail-Secure power outputs.
  • b) Sixteen (16) form "C" 5A rated relay outputs.
  • c) Any combination of the above.
  • Sixteen (16) auxiliary power outputs (unswitched).
  • Filtered and electronically regulated outputs.
  • Supervision: AC Fail, Battery Fail, Battery Presence.
Read More

Need a different version? See all Altronix ALTV2416 Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$1,167.52
Altronix MAXIMAL75 Power Device
Altronix MAXIMAL75 Power Device
Altronix MAXIMAL75 Power Device Altronix MAXIMAL75 Power Device
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix MAXIMAL75 Power Device Overview

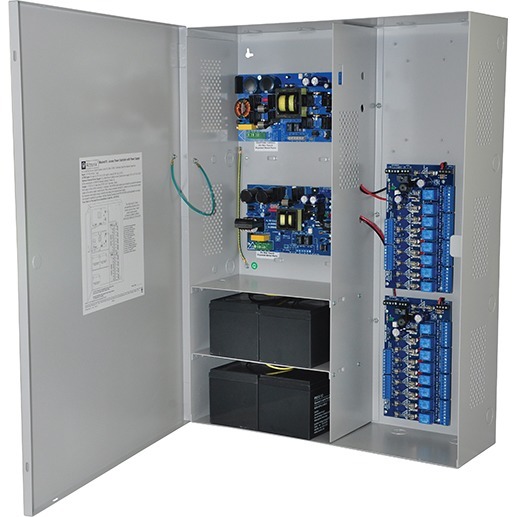

2 Power Supply/Charger with Access power controllers - 16 fused non-power limited outputs, 8 outputs are 12VDC @ 9.5 amp and 8 outputs are 24VDC @ 9.7 amp, outputs are individually selectable for Fail-Safe or Fail-Secure operation or as dry form "C" contacts, fire alarm disconnect is selectable by output, AC & battery monitoring, encl. 26"H x 19"W x 6.25"D, 115VAC input, Accommodates up to 4 - 12VDC/12AH batteries, UL Listed (UL294), cUL Listed, CSFM Approved.

Power Description
Input Voltage:
120 V AC
Output Voltage:
  • 8 V DC
  • 24 V DC
Physical Characteristics
Height:
26"
Width:
19"
Depth:
6.3"
Weight (Approximate):
40 lb
Miscellaneous
Compatibility:

Access Control Devices:

  • Mag Lock
  • Electric Strike
  • Magnetic Door Holder
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239947614
UPC: 782239947614
EAN: 0782239947614
UNSPSC: 39121017
