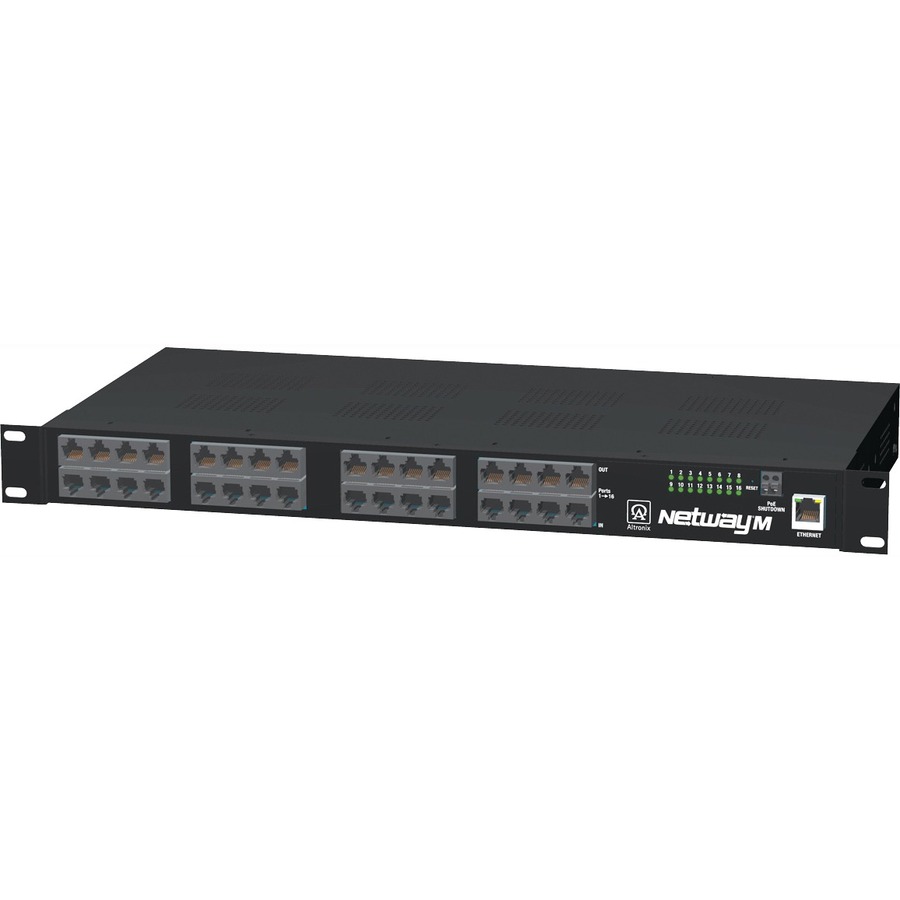

Altronix NETWAY16M Accessory

Altronix ALTV2416 - Altronix NetWay NetWay16M Power over Ethernet Injector Hub - 110 V AC Input - 55 V Output - 16 Ethernet Output Port(s) - 300 W

16 Port Managed Midspan - each port provides PoE or PoE+.
Total power 300W, PoE shutdown selectable by port.
Ethernet port facilitates programming and status monitoring via laptop or LAN.
Unused ports can be shutdown.
1U EIA 19" Rack Chassis.
UL and cUL listed, CE approved.

Need a different version? See all Altronix ALTV2416 Accessories

Chat Now for Qty Discount

Add to Quote

$944.06

Overview

Altronix ALTV2416 Accessory Model Overview

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

Altronix NETWAY16M Accessory Overview

The NetWay16M Managed Midspans provide power and pass data for PoE compliant cameras/edge devices. Cameras/edge devices may be located up to 100m (328 ft.) from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m (328 ft.) for a total range of up to 200m (656 ft.). A maximum range of 600m (1968 ft.) is possible using multiple repeaters, based on camera/device port requirement. NetWay Managed Midspans are capable of supporting non-PoE compliant fixed and PTZ IP cameras utilizing NetWay1512 adapters.

Detailed Specs

Power Description

Input Voltage:

110 V AC

Maximum Output Voltage:

55 V DC

Maximum Input Current:

3 A

Maximum Frequency:

60 Hz

Maximum Output Power:

300 W

Interfaces/Ports

Output Ports:

16 x Ethernet

Physical Characteristics

Height:

1.6"

Width:

19.1"

Depth:

8.5"

Weight (Approximate):

10.20 lb

Miscellaneous

Package Contents:

NetWay NetWay16M Power over Ethernet Injector Hub
2 x Mounting Brackets
6 x Flat Head Screws (For Mounting Brackets)
4 x Rubber Pads

Compatibility:

Fixed Cameras
PTZ IP Cameras

Certifications & Standards:

UL
CUL
CE
IEEE 802.3af compliant
IEEE 802.3at compliant

Environmentally Friendly:

Yes

Country of Origin:

United States

NDAA Compliant:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0782239949069

UPC: 782239949069

EAN: 0782239949069

UNSPSC: 39121000
