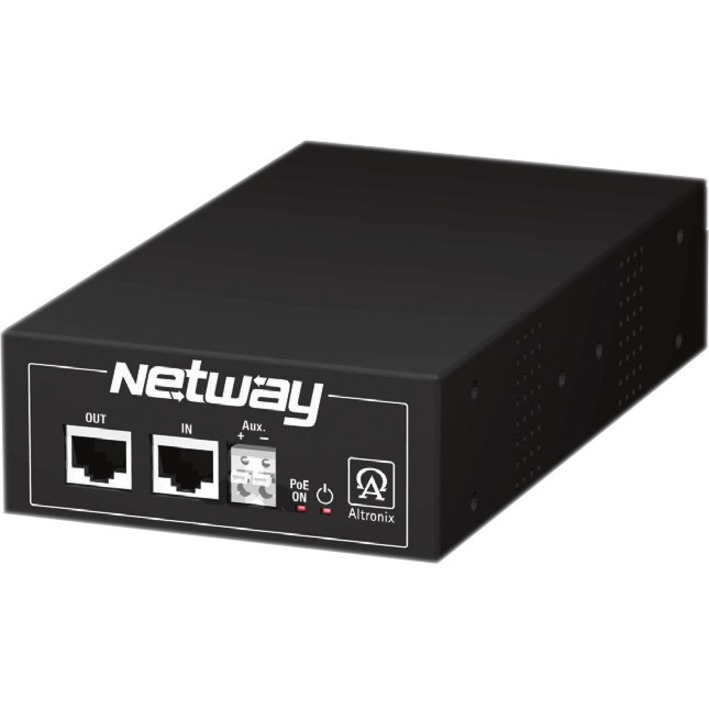

Altronix NETWAY1BT Accessory

Altronix - Single Port Midspan Injector/Power supply - Provides 4PPoE (90W) or 56VDC@90W (Class 2 rated power-limited output), 115/230 VAC Input. CE Approved.

IEEE 802.3af (15W), IEEE 802.3at (30W), and IEEE 802.3bt (90W) compliant
Universal (115VAC or 230VAC) power input
Power provided using all 4 pairs on structured cable
10/100/1000Mbps, half/full duplex, auto negotiation
Port provides up to 90W max
PoE and Power LED
Aux. Class 2 power-limited output rated @ 56VDC/90W
Auto detection and protection of legacy non-PoE cameras/devices
Extends Network link distance in an industrial environment
CE European Conformity

Need a different version? See all Altronix Parts Accessories

Chat Now for Qty Discount

Add to Quote

$245.89

Overview

Altronix Parts Accessory Model Overview

Products and parts from Altronix.

Altronix NETWAY1BT Accessory Overview

Altronix NetWay1BT is an single port midspan/injector that provides PoE/PoE+/Hi PoE up to 90W (802.3bt compliant) power per port and passes data at 10/100/1000 Mbps at distances up to 100m.

Detailed Specs

Power Description

Input Voltage:

120 V AC
230 V AC

Maximum Input Current:

750 mA

Maximum Output Power:

90 W

Interfaces/Ports

Input Ports:

1 x 10/100/1000Base-T

Output Ports:

1 x 10/100/1000Base-T

Physical Characteristics

Height:

1.7"

Width:

4.1"

Depth:

7.2"

Weight (Approximate):

2.20 lb

Miscellaneous

Certifications & Standards:

IEEE802.3bt compliant
CE

Country of Origin:

United States

NDAA Compliant:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

UNSPSC: 39121004
