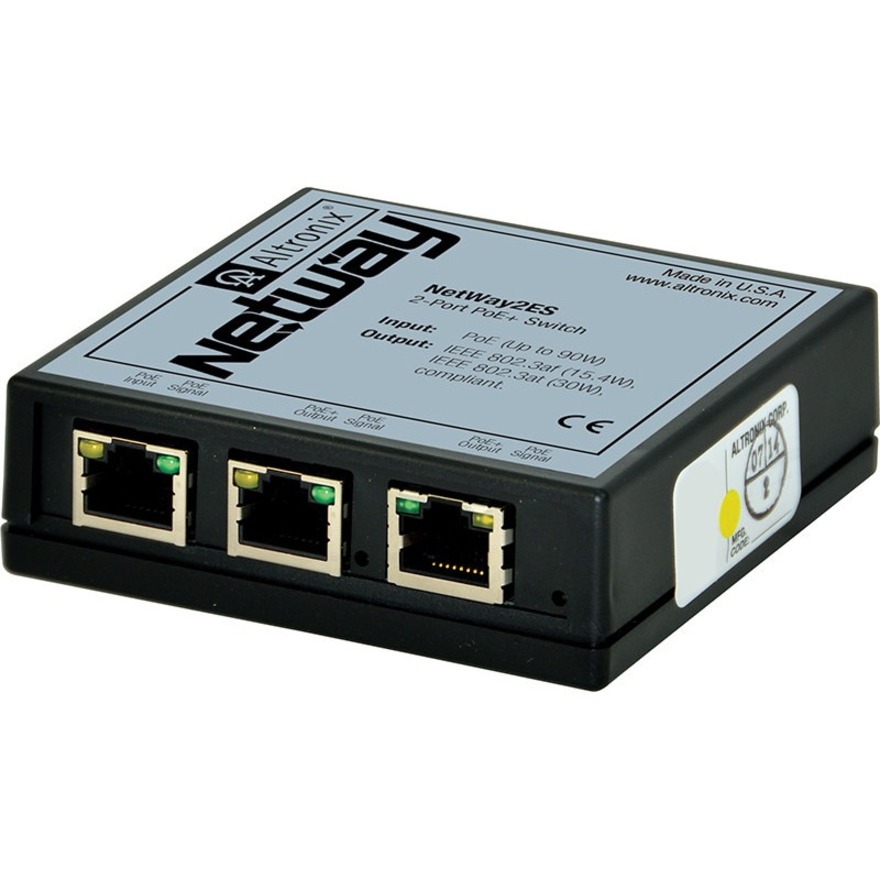

Altronix NETWAY2ES Network Switch

Altronix NetWay2ES - Network Switches, Altronix NetWay2ES, PoE-powered 2 port PoE/PoE+ Switch, Modular plastic case

Remote installation and powering of up to two (2) PoE+ cameras/devices
Two (2) IEEE 802.3af, 802.3at compliant PoE output ports
PoE Input: IEEE 802.3bt compliant
30W maximum power per output port (60W total)
Powered by any PoE midpan/endspan
Data rate: 10/100 Base-T
Input and output port status LEDs
Auto detection and protection of legacy non-PoE cameras/devices
Can be wall or shelf mounted
CE European Conformity

Need a different version? See all Altronix Parts Accessories

Chat Now for Qty Discount

Add to Quote

$205.62

Overview

Altronix Parts Accessory Model Overview

Products and parts from Altronix.

Altronix NETWAY2ES Network Switch Overview

Altronix NetWay2ES PoE-powered 2 port PoE/PoE+ switch is designed for installation at the IDF (Intermediate Distribution Frame) to deploy IP devices. NetWay2ES allows for system expansion by accommodating up to two (2) IP cameras/devices over a single CAT5 or higher structured cable. PoE is passed from a midspan injector, typically located at the MDF (Main Distribution Frame).

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Network (RJ-45):

Yes

Port/Expansion Slot Details:

2 x Fast Ethernet PoE+

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Fast Ethernet

Network Technology:

10/100Base-T

Network & Communication

Layer Supported:

Networking Standards:

IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt

Power Description

PoE (RJ-45) Port:

Yes

PoE Budget:

60 W

Power Source:

PoE

Physical Characteristics

Form Factor:

Wall Mountable
Shelf Mountable

Height:

Width:

3.5"

Length:

3.5"

Weight (Approximate):

4 oz

Miscellaneous

Country of Origin:

United States

Warranty

Limited Warranty:

Lifetime

Item Numbers

UNSPSC: 43222612
