Altronix NETWAY8 Accessory

Altronix ALTV2416 - Altronix NetWay8 Power over Ethernet Midspan - 115 V AC Input - 8 Ethernet Input Port(s) - 8 Ethernet Output Port(s) - 15.40 W

8 Port Midspan.
PoE compliant ports rated @ 15.4W max. per IEEE 8023.af, 2 of these ports are selectable to accommodate IP PTZ cameras.
1U EIA 19" Rack Mount Chassis.
UL and cUL listed, CE approved.

Need a different version? See all Altronix ALTV2416 Accessories

Chat Now for Qty Discount

Add to Quote

$547.37

Overview

Altronix ALTV2416 Accessory Model Overview

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

Altronix NETWAY8 Accessory Overview

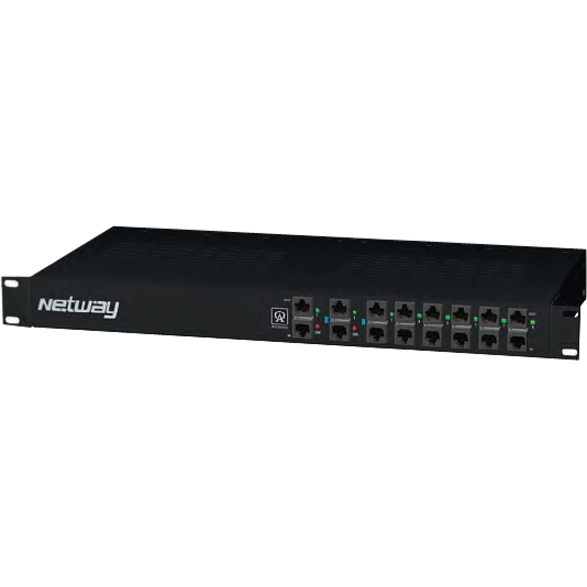

NetWay8 Midspans provide power for PoE compliant cameras. They are available with eight or sixteen ports in a space saving 1U EIA 19" rack mount chassis which may be rack or shelf mounted. Cameras may be located up to 100m (328 ft.) from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m (328 ft.) for a total range 200m (656 ft.). Additionally, NetWay Midspans are capable of supporting conventional fixed and PTZ IP cameras by utilizing NetWay1512 or NetWay3012 splitter/adapters.

Detailed Specs

Power Description

Input Voltage:

115 V AC

Maximum Input Current:

2.80 A

Maximum Frequency:

60 Hz

Maximum Output Power:

15.40 W

Interfaces/Ports

Input Ports:

8 x Ethernet

Output Ports:

8 x Ethernet

Physical Characteristics

Height:

1.6"

Width:

19.1"

Depth:

8.5"

Weight (Approximate):

9.40 lb

Miscellaneous

Package Contents:

NetWay8 Power over Ethernet Midspan
2 x Mounting Brackets
6 x Fat Head Screws (For Mounting Brackets)
4 x Rubber Pads

Additional Information:

Two (2) ports are selectable for 30W to accommodate IP PTZ cameras

Compatibility:

IP Cameras

Certifications & Standards:

IEEE 802.3af compliant
UL
CUL
CE
UL 60950-1

Environmentally Friendly:

Yes

Country of Origin:

United States

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0782239946242, 4703876698727

UPC: 782239946242

EAN: 0782239946242, 4703876698727

UNSPSC: 39121000
