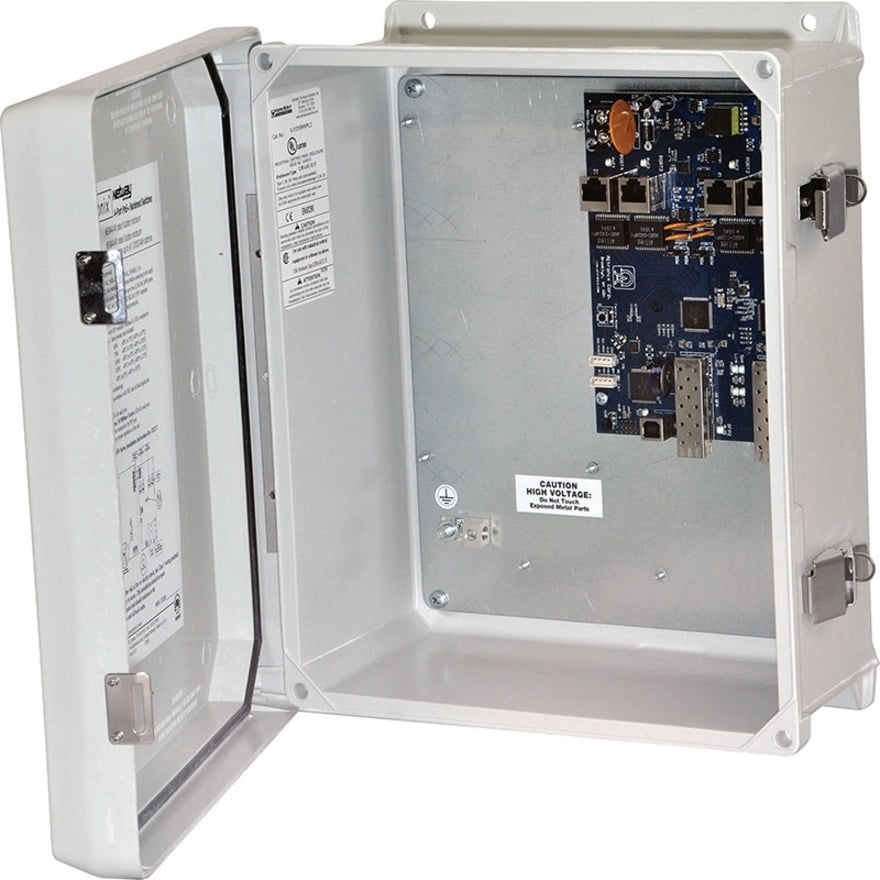

Altronix NETWAYSP4BTWPN Power Device

Altronix - 4PT FIB MED CONV/2SFP/Bluetooth/NEMA4

IEEE 802.3af, 802.3at, 802.3bt compliant.
Two (2) Gigabit SFP ports.
Four (4) 10/100/1000 Mbps Ethernet ports rated at 90W each (limited to 280W total power).
VLAN (Virtual Local Area Networks) subnetwork allows for the grouping together of devices for improved network traffic and higher security.
Remote network management allows for camera/device reset and diagnostic monitoring.
Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report real-time events.
Event log tracks history.
CE European Conformity.
NEMA 4/4X, IP66-11 enclosure.

Need a different version? See all Altronix Parts Accessories

Chat Now for Qty Discount

Add to Quote

$1,043.88

Overview

Altronix Parts Accessory Model Overview

Products and parts from Altronix.

Altronix NETWAYSP4BTWPN Power Device Overview

Altronix NetWaySP4BTWPN supports up to 90W per port (280W total power) for the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP4BTWPN accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Modular:

Yes

Number of PoE (RJ-45) Ports:

Network (RJ-45):

Yes

Port/Expansion Slot Details:

4 x Gigabit Ethernet PoE++
2 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:

Optical Fiber
Twisted Pair

Fiber Mode Supported:

Multi-mode
Single-mode

Ethernet Technology:

Gigabit Ethernet

Network Technology:

10/100/1000Base-T
1000Base-X

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP (mini-GBIC)

Number of SFP Slots:

Network & Communication

Layer Supported:

Networking Standards:

IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt

Management & Protocols

Manageable:

Yes

Power Description

PoE (RJ-45) Port:

Yes

PoE Budget:

280 W

Input Voltage:

57 V
48 V

Power Source:

Power Supply

Physical Characteristics

Form Factor:

Pole Mount
Enclosure

Height:

13.3"

Width:

11.3"

Depth:

5.6"

Weight (Approximate):

9.50 lb

Miscellaneous

Country of Origin:

United States

Warranty

Limited Warranty:

Lifetime

Item Numbers

UNSPSC: 43222612
