Altronix Parts Accessory Model Overview
Products and parts from Altronix.

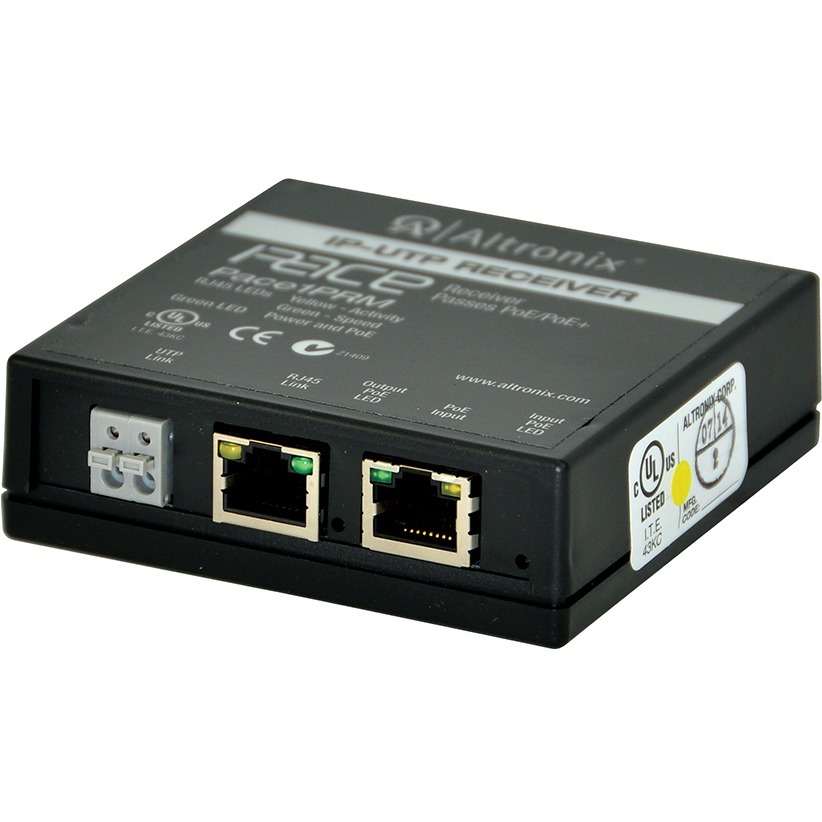

Altronix PACE1PRM Accessory Overview
The Pace1PRM is a long range Ethernet receiver. It is powered via a PoE midspan such as the Altronix Netway series or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over single twisted pair (UTP) or structured cable. Applications:
- Retrofit digital IP cameras in an analog CCTV CAT5 or UTP installations.
- Extend Network link distance in an industrial environment over 610m.
- Works with Megapixel, HD720, HD1080 and VGA (SD) cameras with proper head end equipment.
Interfaces/Ports
Physical Characteristics
Height:
1"
Width:
3.5"
Depth:
3.5"
Receiver Weight (Approximate):
4 oz
Miscellaneous
Additional Information:
Input:
- Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5e or a single twisted pair UTP.
- Speed: 10/100BaseT, half/full duplex, auto negotiation.
- PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1PTM. Power provided by Pace1PRM to Pace1PTM by PoE protocol.
- Throughput is rated to pass 100mbps of data.
- Distance: up to 152m @ 100mbps.
- Distance: up to 500m @ 100mbps.
- Green - PoE ON (by respective RJ45 jack).
- RJ45 jack: Yellow and Green LED IP Link status, 10/100Base-T/active.
- Operating Temperature:
- -4° F to 120.2° F (-20° C to +49° C).
- Storage Temperature:
- -22° to 158° F (-30° to +70° C).
- Relative humidity: 20 to 85%, non-condensing.
- Operating Altitude: - 1000 to 6,561.679 ft. (- 304.8 to 2000m).
- Auto detection and protection of legacy non-PoE cameras/devices.
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239953226
UPC:
782239953226
EAN:
0782239953226
UNSPSC:
43222608
Get help from a Barcoding Expert!
The Altronix PACE1PRM Accessory is also known as
ALT-PACE1PRM
