Altronix PACE1PTM Data Networking

Altronix - Altronix IP and PoE+ Over Extended Distance UTP or CAT5e - Network (RJ-45) - 498.69 ft Extended Range

Ethernet over Extended Distance CAT5e or UTP Transceiver.
Works with Pace1PRM, Pace4PRM, Pace8PRM and Pace16PRM. Transmits IP video/data over CAT5 up to 500m or up to 152m over UTP.
100Mbps full duplex.
Supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at).
UL/cUL Listed. CE Approved.

Need a different version? See all Altronix Parts Accessories

Chat Now for Qty Discount

Add to Quote

$202.52

Overview

Altronix Parts Accessory Model Overview

Products and parts from Altronix.

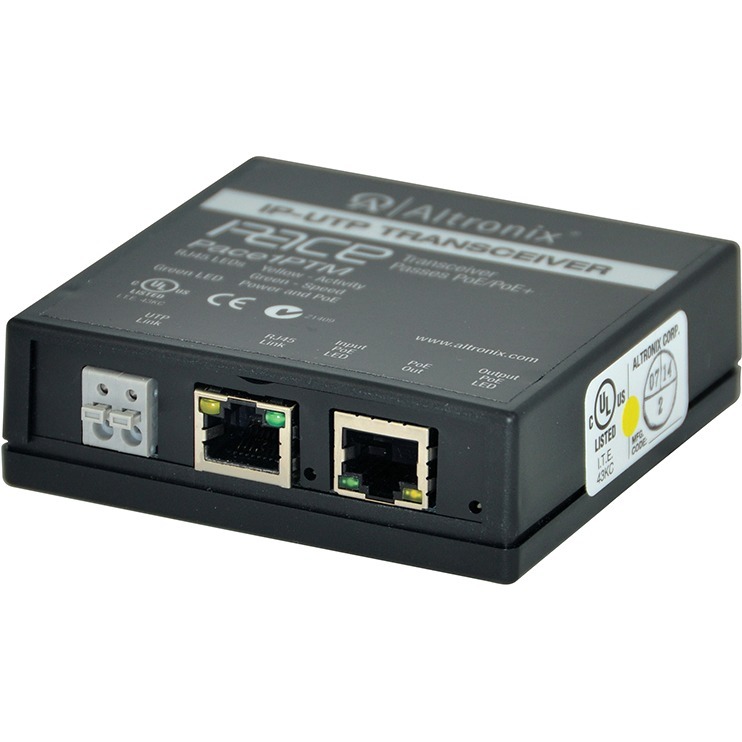

Altronix PACE1PTM Data Networking Overview

The Pace1PTM is a long range Ethernet transceiver designed for use with Pace1PRM, Pace4PRM, Pace8PRM and Pace16PRM receivers. They transmit data at 100mbps full duplex and power via a single twisted pair (UTP) (when paired with Pace1PRM) or Cat5e or higher cable in a PoE(+) compliant format. The Pace1PTM will not deliver power to non compliant devices, thus avoiding damage to improperly connected non-PoE cameras/devices. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over single twisted pair (UTP) (when paired with Pace1PRM) or structured cable. Applications:

Retrofit digital IP cameras in an analog CCTV CAT5 or UTP installations.
Extend Network link distance in an industrial environment.
Works with Megapixel, HD720, HD1080 and VGA (SD) cameras. With proper head end equipment.

Detailed Specs

Technical Information

Maximum Extended Range:

498.69 ft

Maximum Data Transfer Rate:

12.50 MB/s

Interfaces/Ports

Network (RJ-45):

Yes

Physical Characteristics

Height:

Width:

3.5"

Depth:

3.5"

Transmitter Weight (Approximate):

4 oz

Miscellaneous

Additional Information:

Input:

PoE (15W) IEEE 802.3af compliant or PoE+ (30W)
IEEE 802.3at compliant from Pace1PRM, Pace8PRM, or Pace16PRM.

Ethernet:

Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e or a single twisted pair UTP.
Speed: 10/100BaseT, half/full duplex, auto negotiation.
PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1PTM.
Throughput is rated to pass 100mbps of data.

UTP (single twisted pair) from Receiver to Pace1PTM:

Distance: up to 152m @ 100mbps.

CAT5e or Higher from Receiver to Pace1PTM:

Distance: up to 500m @ 100mbps.

LED Indicators:

Green - PoE ON (by respective RJ45 jack).
Yellow and Green LED IP Link status, 10/100Base-T/active.

Environmental:

Operating Temperature:
For 15W: -40° C to 75° C (-40° F to 167° F).
For 25W: -40° C to 70° C (-40° F to 158° F).
For 30W: -40° C to 60° C (-40° F to 140° F).
Storage Temperature:
-40° F to 167° F (-40° C to 75° C).
Relative humidity: 20 to 85%, non-condensing.
Operating Altitude: - 1000 to 6,561.679 ft.
(- 304.8 to 2000m).

Functions:

Auto detection and protection of legacy non-PoE cameras/devices.

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

United States

NDAA Compliant:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0782239953219

UPC: 782239953219

EAN: 0782239953219

UNSPSC: 43222608
