Altronix RESERV1 Accessory

Altronix ALTV2416  -  Altronix ReServ1 Tower UPS - Tower - 120 V AC Input - 24 V DC, 12 V DC Output - 16 x DC Power
  • Prevents power outage by providing reliable buffering of DC voltage for many hours
  • Short Circuit protection type provides dependable power supply with maximum efficiency
  • Overload protection feature usually operates on an inverse time curve where the stable time becomes less as the current increases
  • 2 batteries for optimal performance with maximum usability
  • 7000 mAh battery capacity allows longer, charged usage in a dependable manner with maximum feasibility
  • DC Power receptacle type offers ease of operation with maximum efficiency
  • 120 V AC input voltage for optimal performance with maximum usability
  • 24 V DC output voltage for optimal performance with maximum feasibility
  • Tower form factor is ideal for running internal applications, serving public websites or storing sensitive customer data with maximum productivity
Read More

Need a different version? See all Altronix ALTV2416 Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$332.68
Altronix RESERV1 Accessory
Altronix RESERV1 Accessory
Altronix RESERV1 Accessory
Altronix RESERV1 Accessory Altronix RESERV1 Accessory Altronix RESERV1 Accessory
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix RESERV1 Accessory Overview

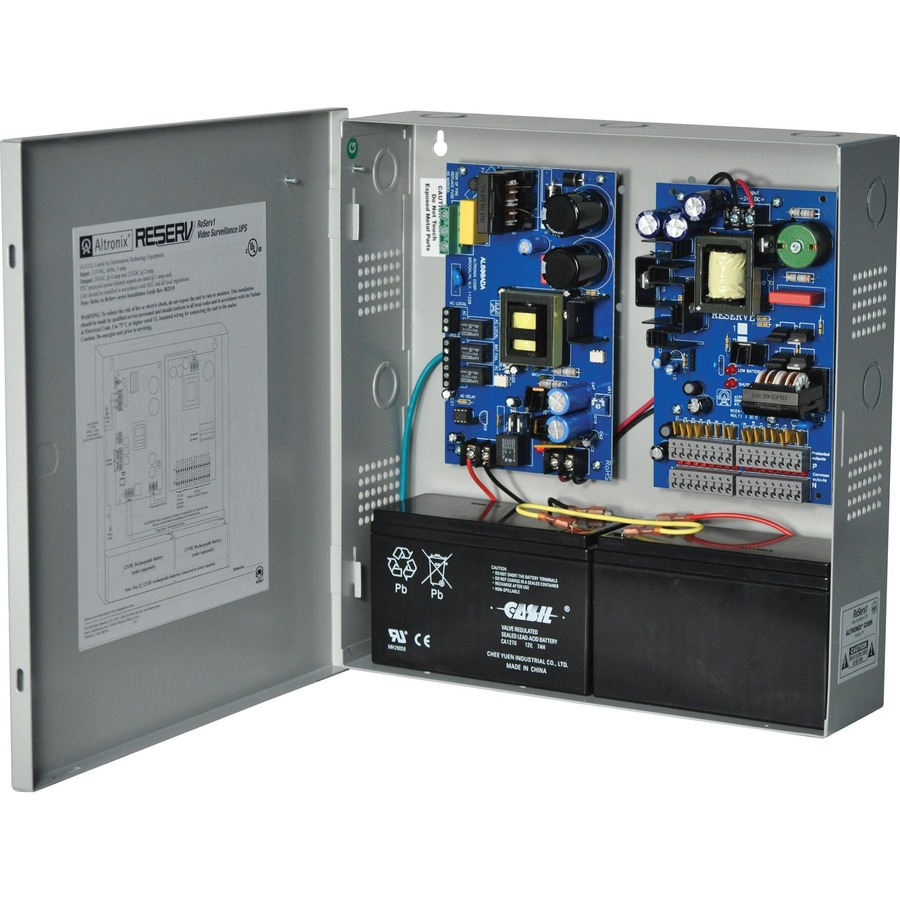

Altronix ReServ1 Video Surveillance UPS is designed to simultaneously provide power for 24VAC and 12VDC cameras during normal or power outage conditions. True sine wave regulated AC outputs and regulated DC outputs.
Technical Information
Receptacle Type:
DC Power
Receptacle Detail:
16 x DC Power
Protection Type:
Short Circuit
Overload Protection:
Yes
Power Description
Input Voltage:
120 V AC
Output Voltage:
  • 24 V DC
  • 12 V DC
Input Current:
3.50 A
Output Current:
4 A
Input Frequency:
60 Hz
Battery Information
DC System Voltage:
12 V DC
Number of Batteries:
2
Battery Capacity:
7000 mAh
Environmental Conditions
Storage Temperature:
-4°F (-20°C) - 158°F (70°C)
Thermal Dissipation:
17.88 W
Physical Characteristics
Height:
13.5"
Width:
13"
Depth:
3.3"
Form Factor:
Tower
Weight (Approximate):
10.36 lb
Miscellaneous
Certifications & Standards:
  • UL Listed (UL2044)
  • cUL
  • CE
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239945085
UPC: 782239945085
EAN: 0782239945085
UNSPSC: 39121011
