Connectivity Technology:
Wired
Recommended Usage:
Wall
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix T1KE38 Power Device Overview

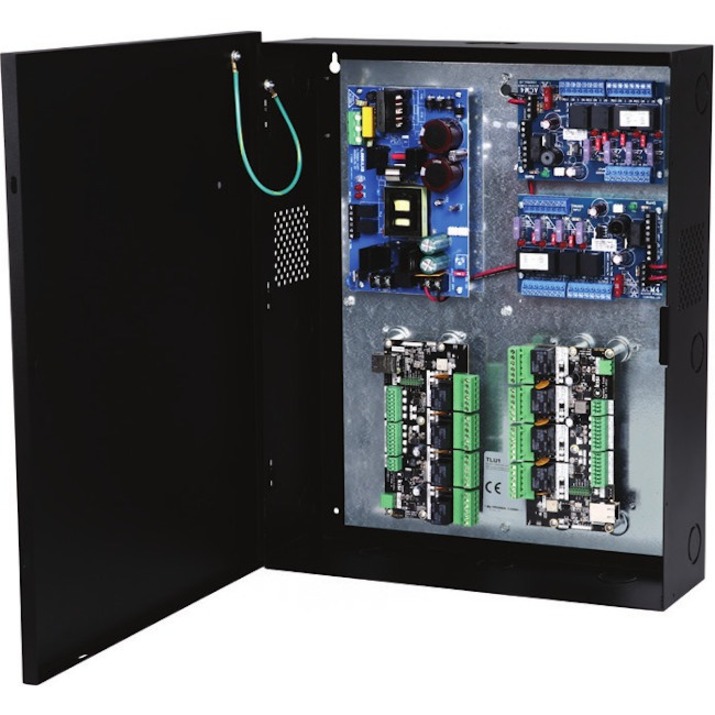

Altronix T1KE38D kit consists of Trove1 enclosure and TLU1 Altronix & Kisi backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger and two (2) four (4) PTC protected output access control modules. This kit also accommodates various combinations of Kisi boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Technical Information
Battery Information
Battery Included:
No
Number of Batteries Supported:
2
Battery Capacity:
7000 mAh
Battery Voltage:
12 V DC
Power Description
Power Source:
Power Supply
Input Current:
3.50 A
Input Voltage:
115 V AC
Environmental Conditions
Maximum Operating Temperature:
120.2°F (49°C)
Physical Characteristics
Dimensions:
14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
Weight (Approximate):
Product Weight: 17.23 Lbs. (7.82 kg).
Miscellaneous
Package Contents:
- 1 x Trove1 Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
- 1 x AL600ULXB Power Supply Charger, Single Class 2 Output, 12/24VDC @ 6A, 115VAC, Board
- 2 x ACM4CB Access Power Controller, 4 PTC Class 2 Relay Outputs, FAI, Board
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
31162800
Get help from a Barcoding Expert!
The Altronix T1KE38 Power Device is also known as
ALT-T1KE38
or T1KE38.
