Altronix T2KE3316D Power Device

Altronix - Power Systems & Supplies, Altronix, Trove2LU2 two (2) AL600ULXB (6A@12/24VDC) power supply, two (2) ACM8CB - 8 PTC Output Access Power Controller. Includes: (20) MM1''S, Camera lock, tamper switch, battery leads and mounting hardware.

- 12 or 24VDC power supply/chargers
- Accommodates up to four (4) Kisi Pro Controllers
- Includes twenty (20) mounting magnets for Kisi Pro Controller
- Convenient knockout configuration:
- One (1) single knockout 2.415" (2" Conduit)
- Sixteen (16) double knockouts
1.362" (1" Conduit) / 1.115" (3/4" Conduit)
- Supervision
- AC Fail
- Battery Fail and Battery Presence
- Agency Listings:
- CE European Conformity
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
- Lifetime Warranty*

Need a different version? See all Altronix Parts Accessories

Chat Now for Qty Discount

Add to Quote

$1,391.00

Overview

Altronix Parts Accessory Model Overview

Products and parts from Altronix.

Altronix T2KE3316D Power Device Overview

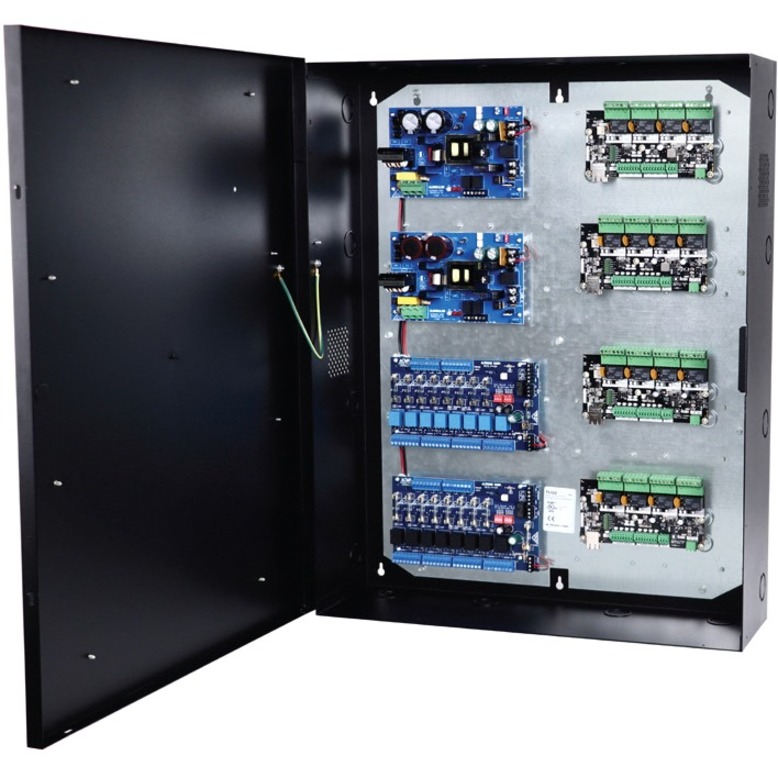

Altronix T2KE3316DV kit consists of Trove2 enclosure, TLU2 Kisi/Altronix backplane with two (2) 12 or 24VDC @ 6A power supply/chargers, and two eight (8) PTC protected output access control modules. This kit also accommodates up to four (4) Kisi Pro Controllers for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Detailed Specs

Battery Information

Battery Included:

Power Description

Power Source:

Power Supply

Environmental Conditions

Maximum Operating Temperature:

120.2°F (49°C)

Physical Characteristics

Dimensions:

21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).

Weight (Approximate):

54.7 Lbs. (24.8 kg).

Miscellaneous

Package Contents:

1 x Trove2 (Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane).
2 x AL600XB220 (Power Supply Charger, 12/24VDC @ 6A, 220VAC, Board).
2 x ACM8CB (Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board).

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

Lifetime

Item Numbers

UNSPSC: 31162800

Reviews

Q&A

Get help from a Barcoding Expert!

The Altronix T2KE3316D Power Device is also known as ALT-T2KE3316D or T2KE3316D.
