Altronix T2KHK312 Power Device

Altronix - Power Systems & Supplies, Altronix, 12-Door Altronix/Kantech Access and Power Integration Kit - Trove2KH2 with AL600ULXB, T1618300K, ACM4, ACM8

Need a different version? See all Altronix Parts Accessories

Chat Now for Qty Discount

Add to Quote

$1,251.92

Overview

Altronix Parts Accessory Model Overview

Products and parts from Altronix.

Altronix T2KHK312 Power Device Overview

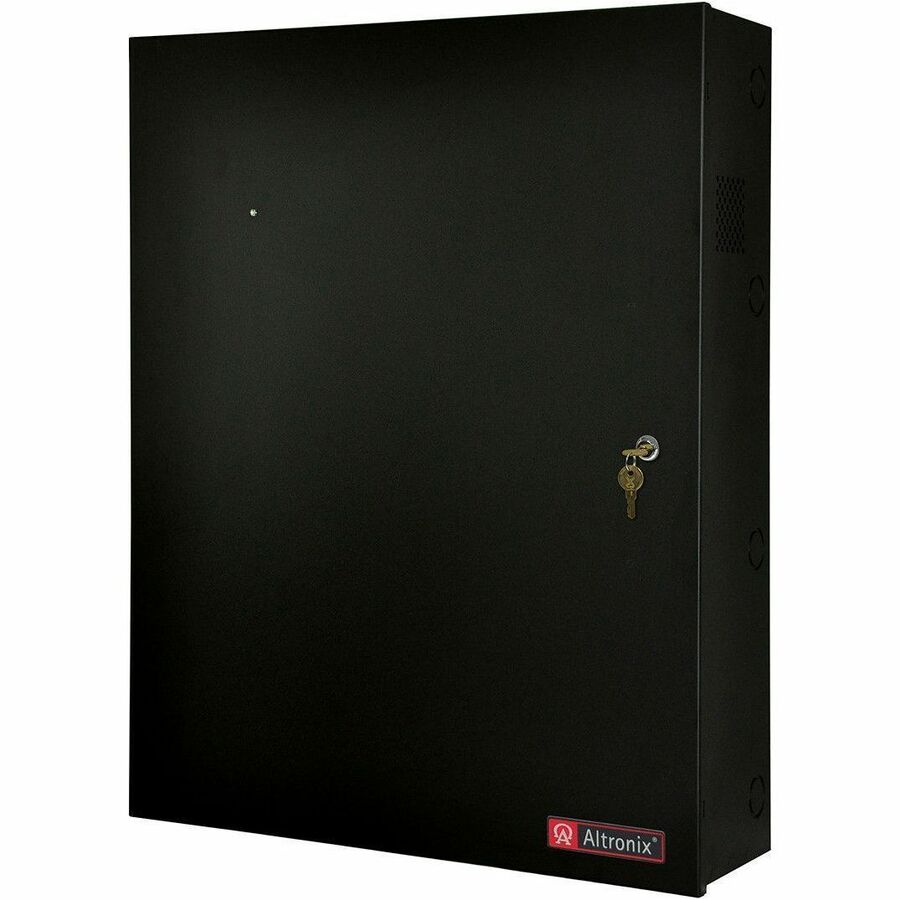

Altronix T2KHK312 kit consists of Trove2 enclosure, TKH2 Kantech/Altronix backplane with one (1) 12VDC or 24VDC 6A power supply/charger, one (1) eight (8) output fused access power controller, one (1) four (4) output fused access power controller and one (1) 16VAC/18VAC transformer.

This kit also accommodate various combinations of Kantech boards for up to twelve (12) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Detailed Specs

Battery Information

Battery Included:

Yes

Number of Batteries Supported:

Battery Rechargeable:

Yes

Battery Capacity:

12000 mAh

Battery Voltage:

12 V DC

Environmental Conditions

Maximum Operating Temperature:

122°F (50°C)

Physical Characteristics

Dimensions:

21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D)

Weight (Approximate):

Weight: 61.7 Lbs. (28 kg)

Miscellaneous

Package Contents:

1 x Access and Power Integration Enclosure
1 x Trove2 Backplane
1 x Access Power Controller
1 x Access Power Controller
1 x Power Supply Charger
1 x Open Frame Transformer Kit

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

Lifetime

Item Numbers

UNSPSC: 31162800
