Input Voltage:
- 120 V AC
- 24 V DC
- 12 V DC
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix T2M7XK1 Power Device Overview

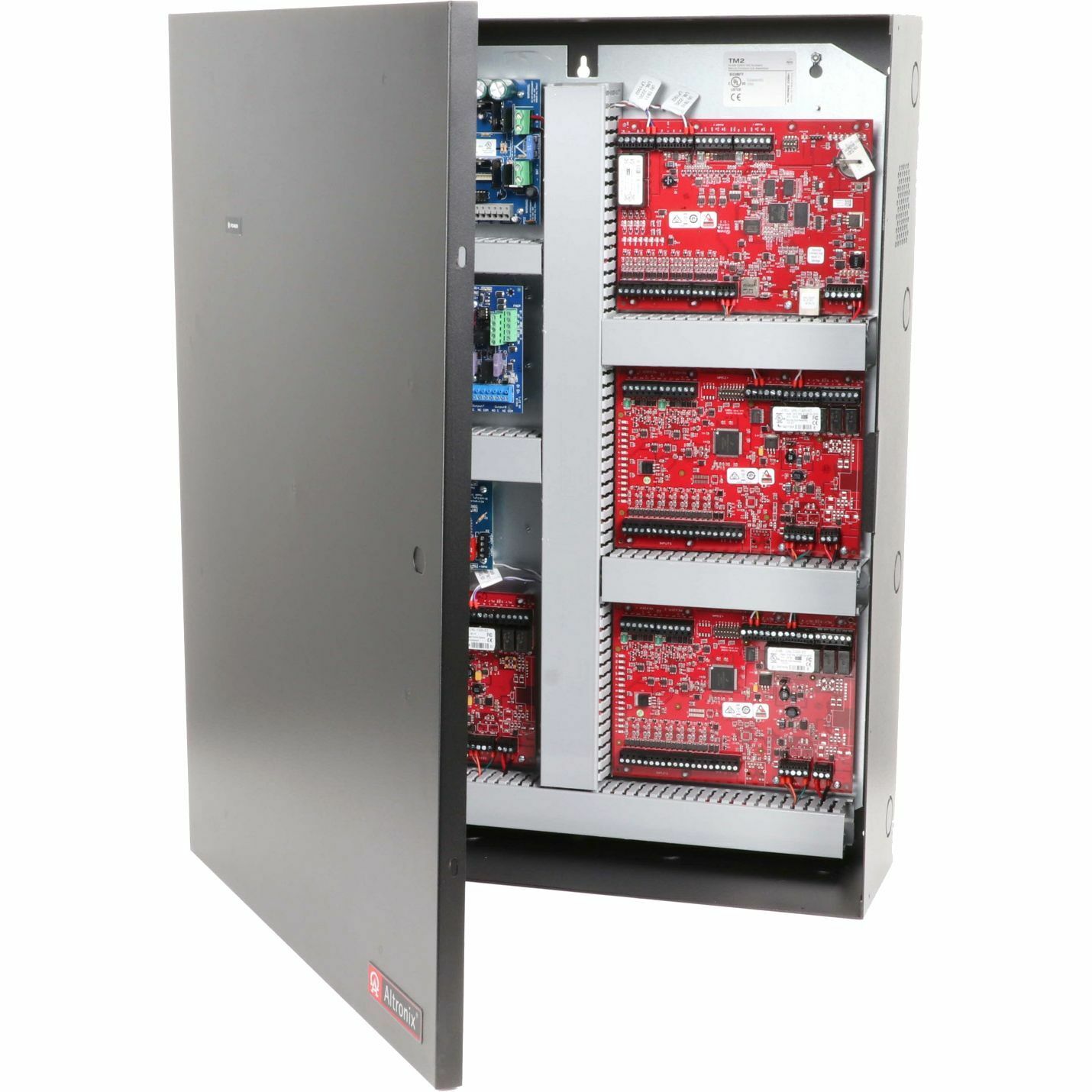

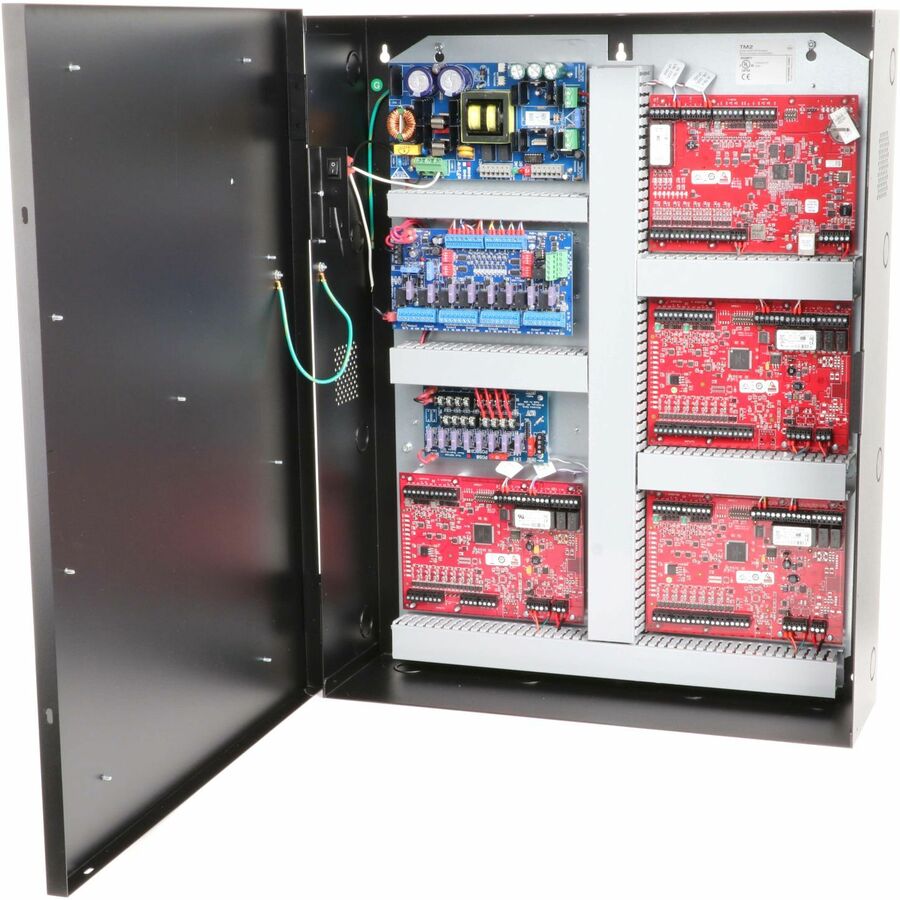

Altronix T2M7XK1 is a 8-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2M7XK1 accommodates one (1) Intelligent Dual Reader Controller and three (3) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2 LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, Schneider Electric, Vanderbilt
Power Description
Physical Characteristics
Dimensions:
Enclosure:
- Wall mount enclosure for indoor use.
- Accommodates up to four (4) 12VDC/7AH Batteries.
- Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
- 3/4" and 1" combination knockouts.
Weight (Approximate):
- Product Weight: 41.6 Lbs. (18.87 kg).
Miscellaneous
Package Contents:
- 1 x Trove2 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
- 1 x TM2 Trove2 Backplane for Altronix & Mercury
- 1 x eFlow104NB Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
- 1 x VR6 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
- 1 x ACMS8 Dual Input Access Power Controller, 8 Fuse Protected Outputs, Board
- 1 x PDS8 Dual Input Power Distribution Module8 Fused Outputs
- 1 x RSB1 Single Power ON/OFF Rocker Switch with Mounting Bracket
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Get help from a Barcoding Expert!
The Altronix T2M7XK1 Power Device is also known as
ALT-T2M7XK1
