Altronix T3HWK75F16 Power Device Overview

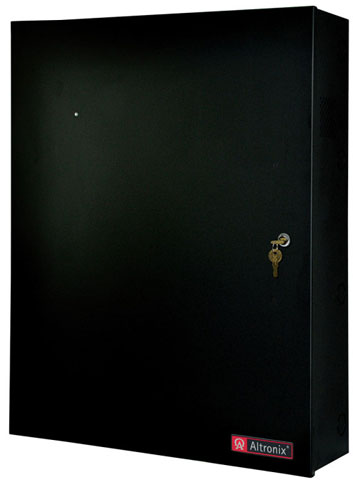

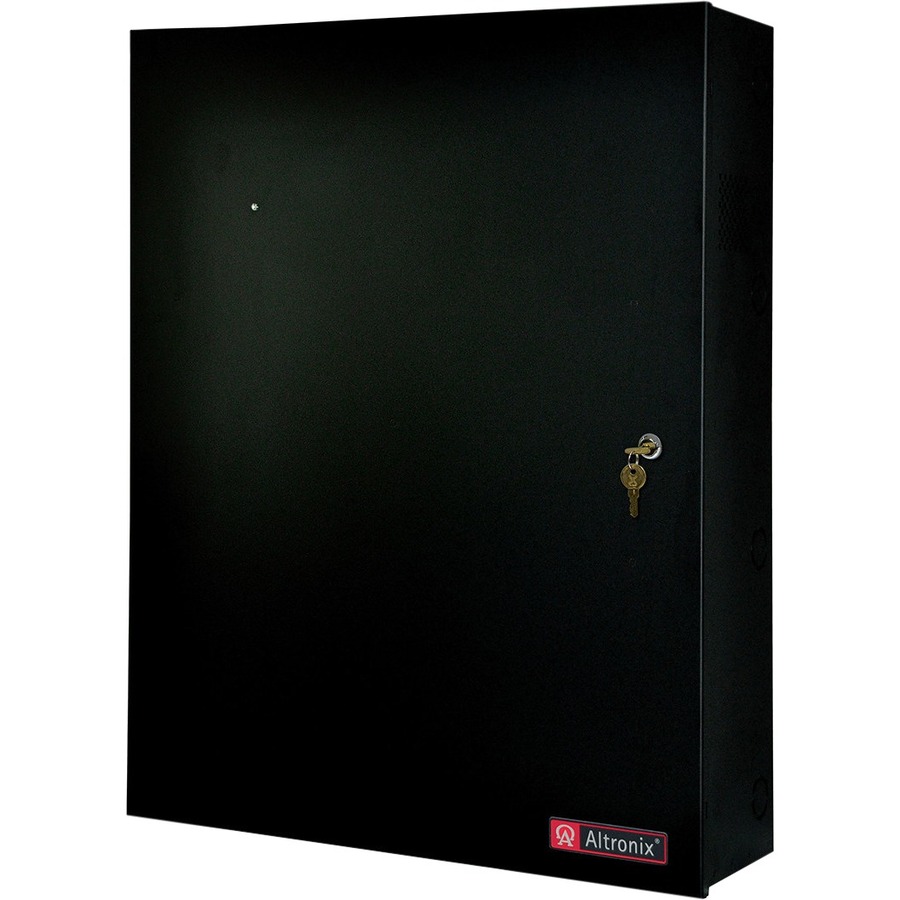

Altronix T3HWK75F16 kit consists of Trove3 enclosure, THW3 Honeywell/Altronix backplane and THWD2 Honeywell/Altronix door backplane with one (1) 24VDC @ 10A and one (1) 12VDC @ 10A power supply/chargers, two (2) 8-output fused access power controllers and one (1) 8-output fused power distribution module. Also featured is a rocker switch bracket with two (2) rocker switches.
THW3 backplane also accommodates up to six (6) Honeywell 4200 Series or WIN-PAK Series boards and up to two (2) Honeywell PRO22MX8 boards for up to sixteen (16) doors in a single enclosure. THWD2 accommodates additional one (1) Honeywell PRO22MX8 and up to six (6) Honeywell 4200 Series or WIN-PAK Series.
Trove simplifies board layout and wire management, reduces installation time and labor costs.

Detailed Specs

Physical Characteristics

Product Material:

Galvanized Steel

Dimensions:

30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D)

Weight (Approximate):

Product Weight: 85 Lbs. (38.6 kg)

Miscellaneous

Package Contents:

1 x THW3 - Trove3 Backplane for Altronix/Honeywell, ProWatch, WinPak
1 x eFlow104NB - Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
1 x eFlow102NB - Power Supply Charger, Single Output, 12VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
2 x ACM8 - Access Power Controller, 8 Fused Relay Outputs, FAI, Board
1 x PD8UL - Power Distribution Module, 8 Fused Outputs up to 28VAC/VDC, Board
1 x RSB2 - Dual Power ON/OFF Rocker Switches with Mounting Bracket
1 x Trove3 - Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
