Alvarion 853277 Data Networking

The Alvarion 853277 Data Networking has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

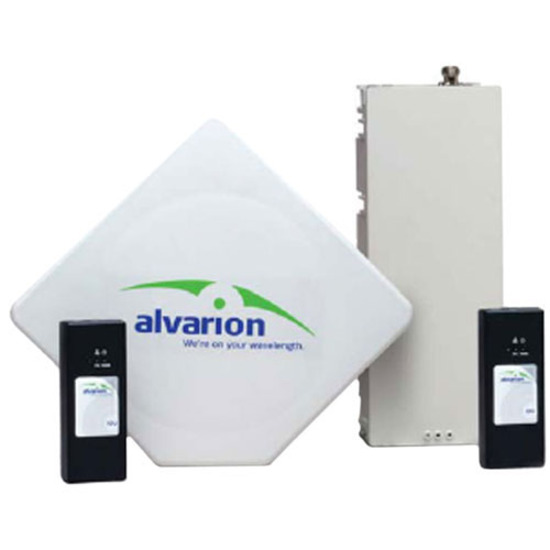

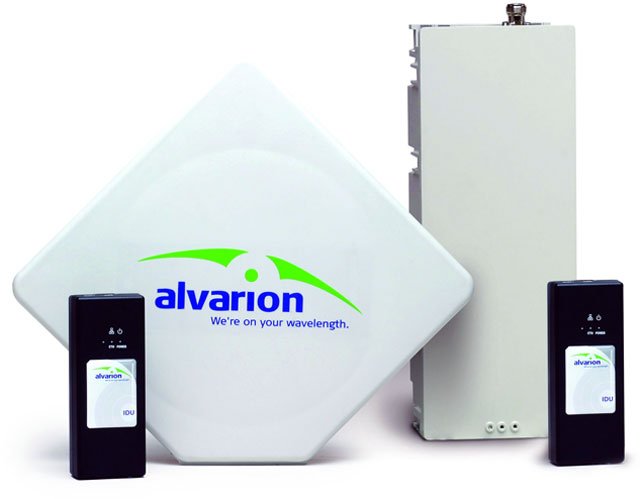

Alvarion BreezeNET - BU/RB=B28-5.3 Base Unit/Remote Bridge

In situations where running a cable would be impractical or prohibited, use this wireless bridge to create point-to-point Wi-Fi connectivity between two wired networks
With IEEE 802.11a standard and up to 54 Mbit/s data transfer rates, this wireless bridge enables efficient network performance
Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network

Need a different version? See all Alvarion BreezeNET Data Networkings

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Full specifications (PDF)

Alvarion BreezeNET Data Networking Model Overview

The BreezeNET family of products provides efficient, cost-effective, secured point-to-point networking solutions. BreezeNET is optimized for building-to-building connectivity, covering distances of more than 60 km (37 miles) in difficult environments and weather conditions.

Alvarion 853277 Data Networking Overview

BreezeNET B28 is a product of wireless point-to-point bridging solutions for license-exempt frequency bands. Providing an efficient and secure solution for several applications, broadband access, building-to-building connectivity and backhaul services between two remote locations, BreezeNET B28 is also a powerful and cost-effective wireless link for backhauling point-to-multipoint networks to their Internet points-of-presence, eliminating the necessity for expensive leased lines over wireline infrastructures.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11a

UNII Band:

Yes

UNII Minimum Frequency:

5.15 GHz

UNII Maximum Frequency:

5.35 GHz

Total Number of Antennas:

Antenna Gain:

21 dBi

Antenna Type:

Directional Antenna

Antenna Connector:

N-Type

Wireless Transmission Speed:

54 Mbit/s

Wireless Security:

128-bit WEP

Interfaces/Ports

Ethernet Technology:

Fast Ethernet

Management & Protocols

Management:

DHCP
SNMP v1
VLAN
Telnet

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

2.4"

Depth:

12"

Weight (Approximate):

7.28 lb

Miscellaneous

Additional Information:

Robust performance in non-line-of-sight (NLOS) environments
Long reach: Up to 50 km
Net Throughput: Up to 35 Mbps (up to 20 Mbps uplink and up to 20 Mbps downlink)

Item Numbers

UNSPSC: 43222631
