Alvarion 853281 Data Networking

The Alvarion 853281 Data Networking has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

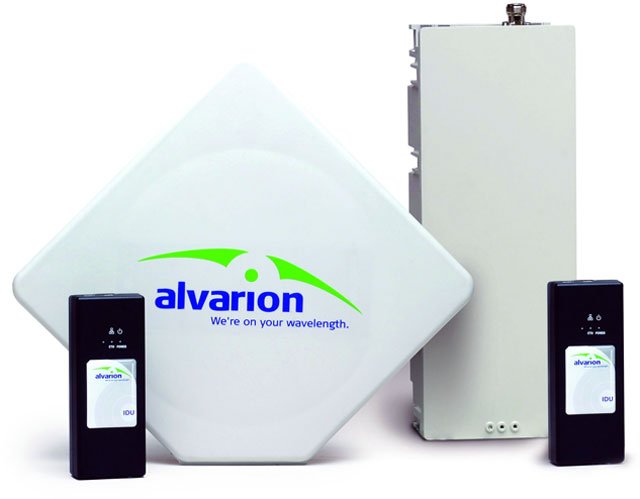

Alvarion BreezeNET  -  BreezeNET (B100 5.3GHz Base Unit-Remote Bridge - Includes: Outdoor Unit ODU with Integrated 21 dBi 10.5 Degrees Antenna, Indoor Units IDU with Lightning Protection, Indoor to Outdoor 20m Base Band Cable and 1.5m Power Cable)

  • No need to run those expensive long cables, just use this wireless bridge to connect not just one but two of your existing wired networks to enjoy Wi-Fi
  • Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
  • Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones
Read More
Need a different version? See all Alvarion BreezeNET Data Networkings
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Alvarion 853281 Data Networking
Alvarion 853281 Data Networking
Alvarion 853281 Data Networking Alvarion 853281 Data Networking
Full specifications (PDF)

Alvarion BreezeNET Data Networking Model Overview

The BreezeNET family of products provides efficient, cost-effective, secured point-to-point networking solutions. BreezeNET is optimized for building-to-building connectivity, covering distances of more than 60 km (37 miles) in difficult environments and weather conditions.
Alvarion 853281 Data Networking Overview

BreezeNET B100 is a product of wireless point-to-point bridging solutions for license-exempt frequency bands. Providing an efficient and secure solution for several applications, broadband access, building-to-building connectivity and backhaul services between two remote locations, BreezeNET B100 is also a powerful and cost-effective wireless link for backhauling point-to-multipoint networks to their Internet points-of-presence, eliminating the necessity for expensive leased lines over wireline infrastructures.

Full specifications (PDF)
Technical Information
UNII Band:
Yes
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.35 GHz
Total Number of Antennas:
1
Antenna Gain:
21 dBi
Antenna Connector:
N-Type
Wireless Transmission Speed:
108 Mbit/s
Wireless Security:

128-bit WEP

Interfaces/Ports
Ethernet Technology:
Fast Ethernet
PoE (RJ-45) Port:
Yes
Management & Protocols
Management:
  • DHCP
  • SNMP v1
  • VLAN
  • Telnet
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
2.4"
Depth:
12"
Weight (Approximate):
7.28 lb
Miscellaneous
Additional Information:
  • Robust performance in non-line-of-sight (NLOS) environments
  • Long reach: Up to 50 km
  • SCADA and Intelligent Traffic Networks (ITN)
  • Up to 73 Mbps (up to 70 Mbps uplink and up to 70 Mbps downlink)
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Alvarion 853281 Data Networking is also known as ALV-853281
