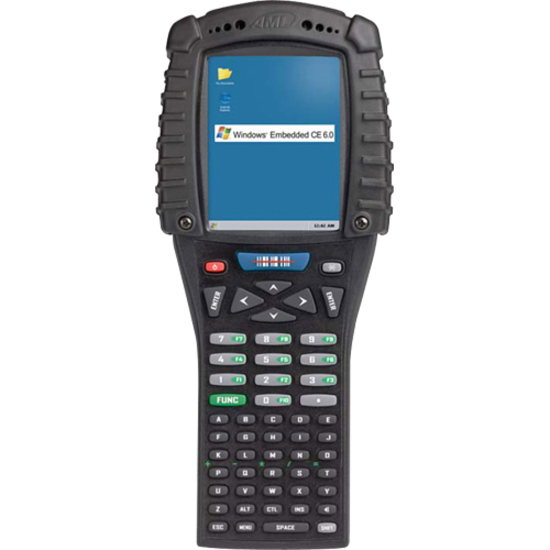

AML M7225-0100-00 Mobile Computer

The AML M7225-0100-00 Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
AML M7225  -  Batch, 1D Laser, Windows CE6.0. Interface Cables and Cradles Sold Separately. Charging Cradle (Part# ACC-5925). 4-Position Handheld Charger (Part# ACC-5935).
RAM Memory
128 MB
IP Rating
IP54
Interface Options
None
Operating System
Windows CE 6.0
  • Touch panel gives your workforce ease, along with familiar and flexible operation, thus improving overall efficiency on a daily basis
  • 3.5" QVGA display screen allows you to execute two applications at the same time
  • Alphanumeric keyboard type provides optimal input convenience with added usability
  • Improve work efficiency with laser scanning engine
  • Windows CE 6.0 OS helps the clients smartly adapt to their business needs
  • 128 MB standard memory makes you productive with its smooth performance
  • Store your additional data in the supported microSD memory card
  • Batch connectivity - Gathers data and uploads it back to the network all at once
Read More

Need a different version? See all AML M7225-B Mobile Computers

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
AML M7225-0100-00 Mobile Computer
AML M7225-0100-00 Mobile Computer
AML M7225-0100-00 Mobile Computer AML M7225-0100-00 Mobile Computer

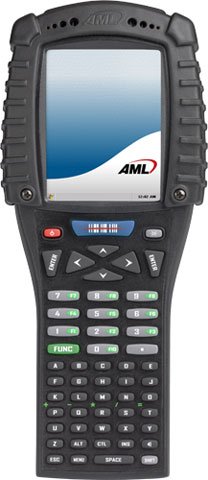

AML M7225-B Mobile Computer Model Overview
The M7225 Batch Mobile Computer is an ideal solution for tough environments where wireless data communications are not permissible. The M7225 is easily adaptable to virtually any environment from manufacturing, distribution, field service, or back-office retail.
AML M7225-0100-00 Mobile Computer Overview

The M7225 is a richly featured handheld computer designed for use in retail, manufacturing, and warehouse data capture applications. Its industrial rating makes it durable enough for harsh or challenging environments, but it is lightweight and compact enough to be used in retail and other commercial applications.

Technical Information
Connectivity Technology:
Batch
Light Source:
Laser
Scanner Range:
Standard Range
Air Electrostatic Discharge (+/-):
15kV DC
Contact Electrostatic Discharge (+/-):
8kV DC
Processor & Chipset
Processor Manufacturer:
Samsung
Processor Type:
ARM9
Processor Speed:
400 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
128 MB
Memory Card Slot:
Yes
Memory Card Supported:
microSD
Display & Graphics
Screen Size:
3.5"
Screen Mode:
QVGA
Screen Resolution:
320 x 240
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Number of Keys:
55
Keyboard Type:
Alphanumeric
Software
Operating System:
Windows CE 6.0
Battery Information
Battery Capacity:
2200 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Width:
3.5"
Depth:
2.3"
Length:
8.9"
Weight (Approximate):
1.10 lb
Miscellaneous
Package Contents:
  • M7225 Handheld Terminal
  • User Documentation
  • Battery
Certifications & Standards:
  • IP54
  • NEMA 12
  • FCC
  • CE
  • Pb Free
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211715
