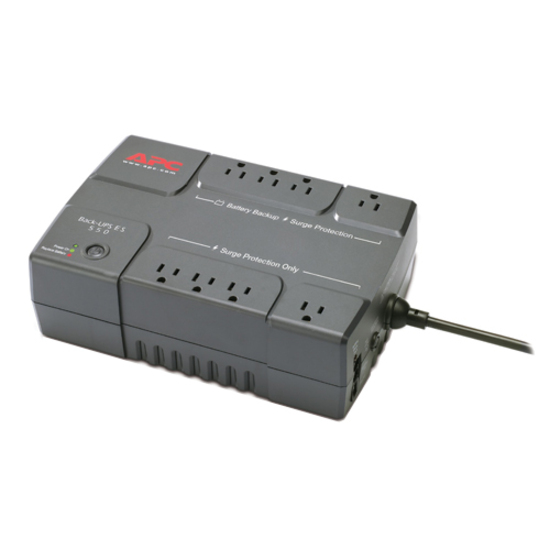

APC BE550R UPS

A newer version of this item is available.
It is replaced by the APC BE550G UPS.

APC Back-UPS Series - APC Back-UPS ES 550VA Desktop UPS - 550VA/330W - 3.3 Minute Full Load - 4 x NEMA 5-15R - Battery Backup System, 4 x NEMA 5-15R - Surge-protected

Compact in size and offers highly efficient solution
Up to 3.30 minute runtime on full load to preserve critical data from power shortage interruptions

Need a different version? See all APC Back-UPS Series Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued See Replacement

Overview

Full specifications (PDF)

APC Back-UPS Series Accessory Model Overview

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

APC BE550R UPS Overview

The Back-UPS ES 550 VA desktop UPS offers our best value for protecting your home and home office computer systems. It provides battery backup power that allows you to work through short and medium length power outages. It also safeguards your equipment from damaging surges and spikes that travel along your utility and phone lines. Award-winning software automatically shuts down your computer system in the event of an extended power outage.

Detailed Specs

Full specifications (PDF)

Technical Information

Plug/Connector Type:

NEMA 5-15P

Receptacles:

4 x NEMA 5-15R

Dataline Protection:

RJ-11

Protection Type:

Surge
Spike

Cord Length:

6 ft

Power Description

Load Capacity:

550 VA/330 W

Input Voltage:

110 V AC

Output Voltage:

120 V AC

Waveform Type:

Stepped Sine Wave

Surge Energy Rating:

365 J

Management

Alarm:

On Battery
Low Battery
Overload

Battery Management:

Intelligent battery management

Controls/Indicators

Status Indicators:

LED Status Display:

On Line
On Battery
Replace Battery
Building Wiring Fault

Interfaces/Ports

USB:

Yes

Battery Information

Number of Batteries:

Battery Characteristics:

Spill-proof, Maintenance-free

Battery Chemistry:

Sealed Lead Acid (SLA)

Backup/Run Time (Full Load):

3.30 Minute

Backup/Run Time (Half Load):

13.50 Minute

Typical Battery Recharge Time:

1 Day

Environmental Conditions

Maximum Operating Temperature:

113°F (45°C)

Sound Emission:

45 dB(A)

Thermal Dissipation:

4.69 W

Physical Characteristics

Color:

Charcoal

Height:

3.4"

Width:

10.9"

Depth:

7.1"

Form Factor:

Desktop

Weight (Approximate):

13.23 lb

Miscellaneous

Package Contents:

Back-UPS ES 550 VA Desktop UPS
CD with software
USB cable
User Manual
Wall-mounting template

Certifications & Standards:

cUL Listed
FCC Part 15 Class B
FCC Part 68
NOM
UL 1778
UL 497A
UL 497B
UL 1449

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0731304248064, 7426801557544

UPC: 731304248064

EAN: 0731304248064, 7426801557544

UNSPSC: 39121011

Reviews

Q&A

Get help from a Barcoding Expert!

The APC BE550R UPS is also known as APC-BE550R
