APC SC420 UPS

The APC SC420 UPS has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

APC Smart-UPS Series - APC Smart-UPS SC 420VA 120V- Not sold in CO, VT and WA - 420VA/260W - 5.5 Minute Full Load - 4 x NEMA 5-15R - Battery/Surge-protected

SC420 not sold in Vermont - select available recommended replacement BK500

Read More

Need a different version? See all APC Smart-UPS Series Accessories

Chat Now for Qty Discount

Discontinued Need Assistance?

APC SC420 UPS

APC SC420 UPS

APC SC420 UPS

APC SC420 UPS

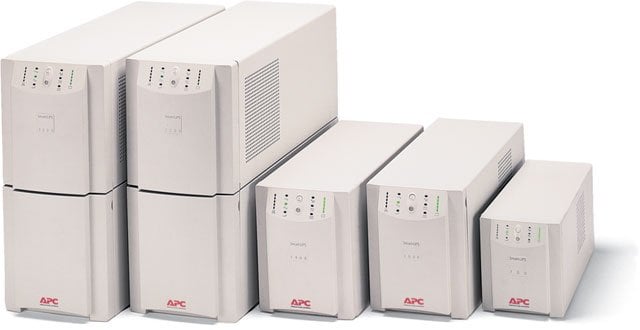

APC Smart-UPS Series Accessory Model Overview

Smart-UPS Series protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not.

APC SC420 UPS Overview

APC Smart-UPS protects your data by supplying reliable, network-grade power for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers, minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's.

More from the Manufacturer

Technical Information

Plug/Connector Type:

NEMA 5-15P

Receptacle Type:

NEMA 5-15R

Receptacle Detail:

4 x NEMA 5-15R

Number of Battery & Surge Outlets:

4

Dataline Protection:

RJ-45

Emergency Power OFF:

Optional

Cord Length:

6 ft

Power Description

Load Capacity:

420 VA/260 W

Input Voltage:

120 V AC

Output Voltage:

120 V AC

Waveform Type:

Stepped Approximated Sine Wave

Surge Energy Rating:

412 J

Management

Alarm:

On Battery
Low Battery

Battery Management:

Intelligent Battery Management

Controls/Indicators

Status Indicators:

On Line
On Battery
Replace Battery
Overload

Interfaces/Ports

Serial Port:

Yes

Battery Information

Battery Characteristics:

Spill-proof, Maintenance-free

Battery Chemistry:

Lead Acid

Backup/Run Time (Full Load):

5.50 Minute

Backup/Run Time (Half Load):

13.50 Minute

Typical Battery Recharge Time:

5 Hour

Hot Swappable:

Yes

Environmental Conditions

Maximum Operating Temperature:

113°F (45°C)

Thermal Dissipation:

14.65 W

Physical Characteristics

Product Color:

Gray

Height:

6.6"

Width:

4.7"

Depth:

14.5"

Form Factor:

Tower

Weight (Approximate):

22.05 lb

Miscellaneous

Package Contents:

Smart-UPS SC 420VA

CD with software

Smart UPS signalling RS-232 cable

User manual

Additional Information:

Automatic restart of loads after UPS shutdown
Boost and Trim Automatic Voltage Regulation (AVR)
Cold-start capable
Generator Compatible

Certifications & Standards:

CSA

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

2 Year

Additional Warranty Information:

2 years repair or replace

Item Numbers

GTIN: 0731304222606, 0739806363353, 0778888125237, 4943783156860

UPC: 000054866874, 731304222606, 739806363353, 778888125237

EAN: 0731304222606, 0739806363353, 0778888125237, 4943783156860

UNSPSC: 39121011

Get help from a Barcoding Expert!

The APC SC420 UPS is also known as APC-SC420
