APC SU029RM2U Accessory

The APC SU029RM2U Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

APC Back-UPS Series - Backplate Kit with Two 5-15R Two 5-20R, One L5-20R

Experience higher efficiency with lower energy cost
Keep your sensitive devices powered with a backup of up to 5.20 minute at full load
3 Hour typical battery recharge time for better convenience and prolonged, productive usage
Lead Acid battery chemistry to better suit your requirements with maximum productivity
NEMA 5-20P plug/connector type for a secure, feasible operation
NEMA 5-20R receptacle type offers maximum safety, convenience, and increased usability
110 V AC input voltage for optimal performance with maximum usability
120 V AC output voltage for optimal performance with maximum feasibility

Need a different version? See all APC Back-UPS Series Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Full specifications (PDF)

APC Back-UPS Series Accessory Model Overview

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

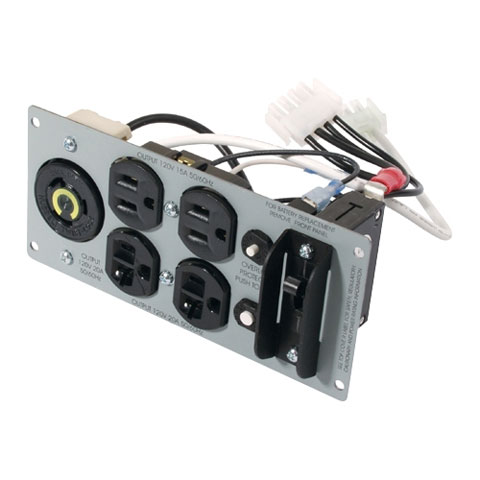

APC SU029RM2U Accessory Overview

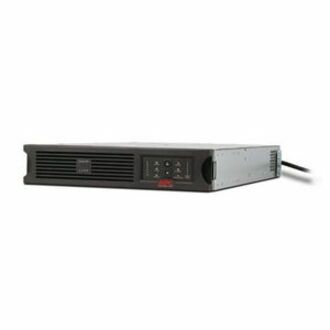

APC Smart-UPS 2200 VA with SU029RM2U Power Backplate protects critical data by supplying reliable, network-grade power in rack-optimized form factor. Award-winning Smart-UPS is the perfect UPS for protecting business critical servers, voice and data networks, point of sale, retail/bank back office and ATM's. High real power output (watts), generous runtime, sine wave output, 16-segment LED visual display, and intelligent battery management make Smart-UPS the leading server class UPS. Included PowerChute management software provides IT administrators the comfort of safe system shutdown and advanced UPS management.

Detailed Specs

Full specifications (PDF)

Technical Information

Plug/Connector Type:

NEMA 5-20P

Receptacle Type:

NEMA 5-20R
NEMA 5-15R
NEMA L5-20R

Receptacle Detail:

1 x NEMA 5-20R
2 x NEMA 5-15R
2 x NEMA L5-20R

Bypass Switch:

Not Provided

Emergency Power OFF:

Yes

Power Description

Load Capacity:

2200 VA/1980 W

Input Voltage:

110 V AC

Output Voltage:

120 V AC

Management

Network Management:

SNMP Manageable

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Total Number of Expansion Slots:

Battery Information

Battery Characteristics:

Spill-proof, Maintenance-free

Battery Chemistry:

Lead Acid

Backup/Run Time (Full Load):

5.20 Minute

Backup/Run Time (Half Load):

15.70 Minute

Typical Battery Recharge Time:

3 Hour

Hot Swappable:

Yes

Physical Characteristics

Height:

3.5"

Width:

19"

Depth:

26"

Rack Height:

Weight (Approximate):

125 lb

Miscellaneous

Package Contents:

Smart-UPS 2200 VA with SU029RM2U Power Backplate
CD with software
Smart UPS signalling RS-232 cable
USB cable
User Manual

Additional Information:

Units per Pallet: 8
Crest Factor: Up to 5 : 1
Replacement battery cartridge quantity: 1
Output Voltage Distortion: Less than 5% at full load
Cold-start capable
Power conditioning
Generator compatible
Predictive failure notification
Disconnected battery notification
InfraStruXure Manager compatible
Automatic Voltage Regulation (AVR)
Automatic restart of loads after UPS shutdown

Certifications & Standards:

CSA
UL 1449
UL 1778

Software Included:

PowerChute management software

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0031113016367, 0731304219217, 0777786267643, 4913393136651

UPC: 031113016367, 731304219217, 777786267643

EAN: 0031113016367, 0731304219217, 0777786267643, 4913393136651

UNSPSC: 39121011
