APC SU3000NET UPS

The APC SU3000NET UPS has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
APC Smart-UPS Series  -  APC Smart-UPS 3000VA - 3000VA - 5.7 Minute Full Load - 8 x NEMA 5-15R

Need a different version? See all APC Smart-UPS Series Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

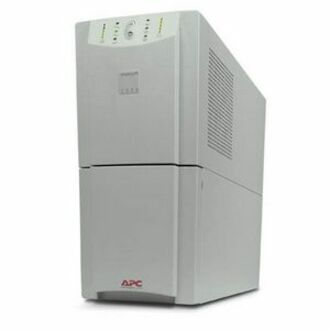

APC SU3000NET UPS
APC SU3000NET UPS
APC SU3000NET UPS APC SU3000NET UPS

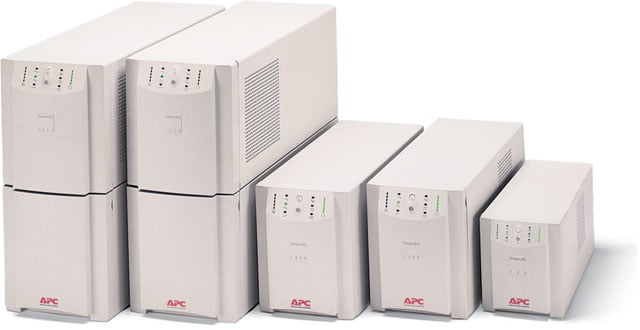

APC Smart-UPS Series Accessory Model Overview
Smart-UPS Series protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not.
APC SU3000NET UPS Overview
Performance power protection for servers and networks.

Smart-UPS 3000VA protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not. SmartSlot internal accessory slot allows you to install optional accessories to enhance the performance of your UPS. APC Smart-UPS 3000VA is the perfect UPS for fileservers, minicomputers, UNIX CPU's, internet hubs, telecommunications systems and other mission-critical applications.
Technical Information
Plug/Connector Type:
NEMA L5-30P
Receptacles:
8 x NEMA 5-15R
Emergency Power OFF:
Optional
Cord Length:
6 ft
Power Description
Load Capacity:
3000 VA
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Power Consumption:
2250 W
Waveform Type:
Sine Wave
Surge Energy Rating:
880 J
Management
Alarm:
  • On Battery
  • Low Battery
Battery Management:
Intelligent Battery Management
Controls/Indicators
Status Indicators:
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Interfaces/Ports
Serial Port:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
5.70 Minute
Backup/Run Time (Half Load):
19.20 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
113°F (45°C)
Sound Emission:
53 dB(A)
Thermal Dissipation:
109.90 W
Physical Characteristics
Color:
Beige
Height:
17"
Width:
7.7"
Depth:
21.5"
Weight (Approximate):
123 lb
Miscellaneous
Package Contents:
  • User Manual
  • Smart UPS signalling RS-232 cable
  • CD with software
Additional Information:
  • Automatic Self Test
  • Automatic Voltage Regulation (AVR)
  • Building wiring fault indicator
  • Load Meter
  • Network-grade line conditioning
  • Overload Indicator
  • Replace Batt Indicator
  • Scalable Run Time
  • Software
  • User Replaceable batteries
Certifications & Standards:
  • CSA
  • FCC A
  • UL 1778
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 39121011
