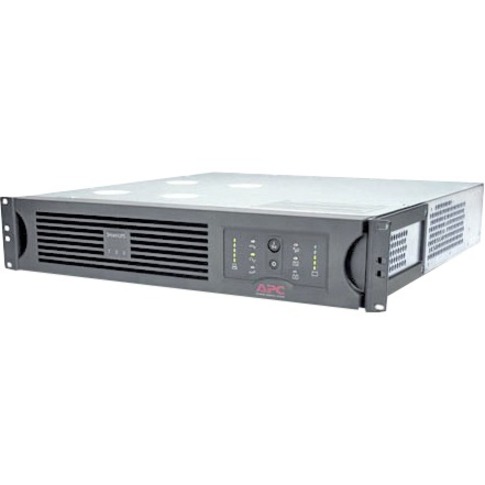

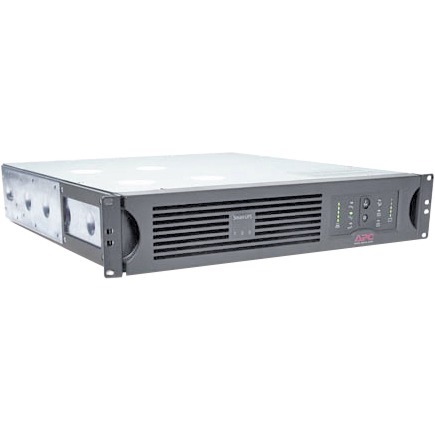

APC SUA1000RMI2U UPS

The APC SUA1000RMI2U UPS has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

APC - APC Smart-UPS 1000VA - 1000VA/670W - 9.1 Minute Full Load - 4 x IEC 320-C13, 2

Need a different version? See all APC Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

APC Parts Accessory Model Overview

Products and parts from APC.

APC SUA1000RMI2U UPS Overview

Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.

Detailed Specs

Technical Information

Plug/Connector Type:

IEC 320-C14

Receptacles:

4 x IEC 60320 C13
2

Emergency Power OFF:

Optional

Power Description

Load Capacity:

1000 VA/670 W

Input Voltage:

220 V AC

Output Voltage:

230 V AC

Waveform Type:

Sine Wave

Surge Energy Rating:

480 J

Management

Alarm:

On Battery
Low Battery

Battery Management:

Intelligent Battery Management

Controls/Indicators

Status Indicators:

LED status display with load and battery bar-graphs and On Line, On Battery, Replace Battery and Overload Indicators.

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Total Number of Expansion Slots:

Battery Information

Battery Characteristics:

Maintenance-free

Battery Chemistry:

Sealed Lead Acid (SLA)

Backup/Run Time (Full Load):

9.10 Minute

Backup/Run Time (Half Load):

31.60 Minute

Typical Battery Recharge Time:

3 Hour

Hot Swappable:

Yes

Environmental Conditions

Maximum Operating Temperature:

113°F (45°C)

Sound Emission:

36 dB(A)

Thermal Dissipation:

26.08 W

Physical Characteristics

Color:

Black

Height:

3.5"

Width:

19"

Depth:

18"

Rack Height:

Weight (Approximate):

62 lb

Miscellaneous

Package Contents:

CD with software (PowerChute Smart-UPS Bundle)
Rack Mounting support rails
Smart UPS signalling RS-232 cable
USB cable
User Manual
Smart-UPS

Additional Information:

Automatic Self Test
Automatic Voltage Regulation (AVR)
Load Meter
Network-grade line conditioning
Wide input voltage range
Configurable for 220, 230 or 240 nominal output voltage

Certifications & Standards:

C-tick
EN 50091-1
EN 50091-2
GOST
VDE
UL 1449

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0731304197270

UPC: 731304197270

EAN: 0731304197270

UNSPSC: 39121011
