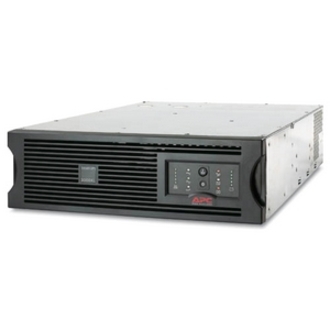

APC SUA3000RMXL3U UPS

The APC SUA3000RMXL3U UPS has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

APC Smart-UPS Series - APC-IMSourcing Smart-UPS XL 3000VA Rack-mountable UPS - 3U Rack-mountable - 3 Hour Recharge - 5.40 Minute Stand-by - 110 V AC Input - 2 x NEMA 5-15R, 9 x NEMA 5-20R

Works adequately in situations where the supply is prone to sags and surges
Keep your sensitive devices powered with a backup of up to 5.40 minute at full load

Need a different version? See all APC Smart-UPS Series Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

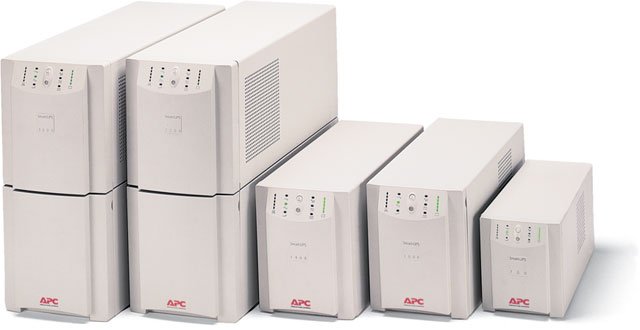

APC Smart-UPS Series Accessory Model Overview

Smart-UPS Series protects your data by supplying network-grade battery backup when power fails. With PowerChute plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not.

APC SUA3000RMXL3U UPS Overview

Over 10 million currently installed - the one you can trust
APC Smart-UPS XL protects your data by supplying reliable, network-grade power and scalable runtime in Rack-mount form factors. Typical applications requiring longer runtime include critical application servers and storage, IP and PBX based voice networks, and enterprise network switches and hubs. Included PowerChute management software provides IT administrators the comfort of safe system shutdown and advanced UPS management. Additional manageability is available through the smartslot, an internal accessory slot that allows installation of optional accessories to enhance performance.. Engineered with the same standards as the award-winning Smart-UPS, with over 10 million installed, the Smart-UPS XL SUA3000RMXL3U adds the advantage of unsurpassed runtime capability for those business applications that demand continual uptime.

Detailed Specs

Technical Information

Plug/Connector Type:

NEMA L5-30P

Receptacles:

2 x NEMA 5-15R
9 x NEMA 5-20R

Emergency Power OFF:

Optional

Transfer Time:

4 ms

Power Description

Load Capacity:

3000 VA/2700 W

Input Voltage:

110 V AC

Output Voltage:

120 V AC

Management

Network Management:

SNMP Manageable

Interfaces/Ports

Serial Port:

Yes

Total Number of Expansion Slots:

Battery Information

Battery Characteristics:

Spill-proof, Maintenance-free

Battery Chemistry:

Sealed Lead Acid (SLA)

Backup/Run Time (Full Load):

5.40 Minute

Backup/Run Time (Half Load):

15 Minute

Typical Battery Recharge Time:

3 Hour

Hot Swappable:

Yes

Physical Characteristics

Height:

5.2"

Width:

19"

Depth:

26"

Rack Height:

Form Factor:

Rack-mountable

Weight (Approximate):

124.25 lb

Miscellaneous

Package Contents:

Smart-UPS XL 3000VA Rack-mountable UPS
CD with software
Rack Mounting support rails
Smart UPS signalling RS-232 cable
User Manual

Certifications & Standards:

CSA, FCC Part 15 Class A, UL 1449, UL 1778

Software Included:

PowerChute Management Software

Warranty

Additional Warranty Information:

Product does not ship from original manufacturer

Product may not be eligible for original manufacturer warranty, rebates or programs

Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)

Product ships from IMSourcing facility within 2-3 days or from stock

Product may ship in non-standard packaging

All returns processed directly from IMSourcing

Product condition subject to availability

Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted

Where applicable, -IM indicates an Ingram Micro certified pre-owned product

Item Numbers

UNSPSC: 39121011

Reviews

Q&A

Get help from a Barcoding Expert!

The APC SUA3000RMXL3U UPS is also known as APC-SUA3000RMXL3U
