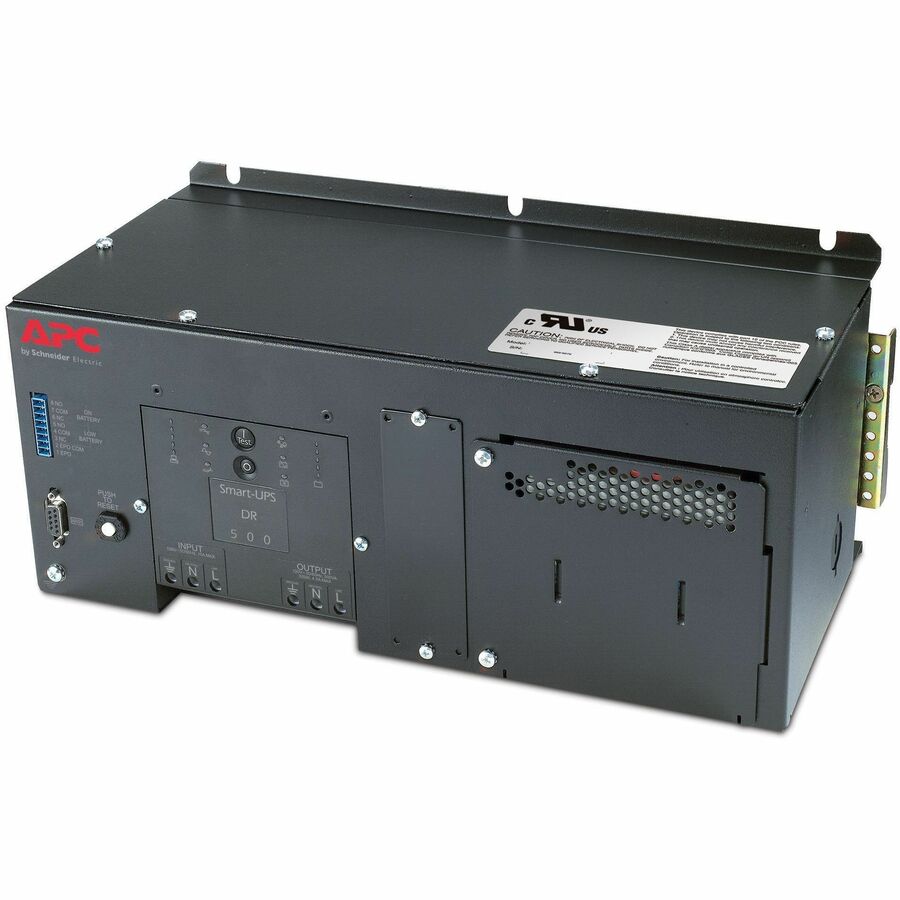

APC SUA500PDR-H Accessory

APC - APC by Schneider Electric 500VA Panel Mount UPS - Panel Mount - 2 Hour Recharge - 8.10 Minute Stand-by - 120 V AC Input - 120 V AC Output - 1 x Hard Wire 3-wire (H N + G)

User-replaceable batteries - Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Read More

Need a different version? See all APC Parts Accessories

Chat Now for Qty Discount

$1,283.48

APC SUA500PDR-H Accessory

APC Parts Accessory Model Overview

Products and parts from APC.

APC SUA500PDR-H Accessory Overview

Industrial UPS

Proven Industrial UPS power protection for control applications and harsh environments.

Continuity of process control is critical across a wide range of Industrial segments: Water/Waste Water, Biotech / Pharmaceutical, Transportation, Chemical, Food & Beverage, Semiconductor, Automotive, Renewable Energy. Equipment utilized in these segments is often subjected to harsh environments including wide temperature ranges or air characteristics with elevated moisture and salt content. APC offers a range of UPS solutions for industrial control applications including communication accessories for dry contact I/O, Modbus and network management. During a power event, whether the requirement is safe shutdown or maintaining data integrity, the APC industrial UPS solution provides reliable protection.

More from the Manufacturer

Technical Information

Plug/Connector Type:

Hard Wire 3 wire (1PH+N+G)

Receptacle Type:

Hard Wire 3-wire (H N + G)

Receptacle Detail:

1 x Hard Wire 3-wire (H N + G)

Number of Battery & Surge Outlets:

1

Transfer Time:

0 ns

Application/Usage:

Industry
Transportation
Mission Critical Equipment
Pharmaceutical
Chemical
Automotive

Power Description

Load Capacity:

500 VA/325 W

Input Voltage:

120 V AC

Input Voltage Range:

82 V AC - 144 V AC

Output Voltage:

120 V AC

Input Frequency:

60 Hz

Waveform Type:

Sine Wave

Surge Energy Rating:

540 J

Management

Network Management:

DB9 RS-232/SmartSlot

Alarm:

On Battery
Low Battery
Overload
Configurable Delay

Controls/Indicators

Status Indicators:

LED Status Display:

On Line
On Battery
Replace Battery
Overload

Interfaces/Ports

Serial Port:

Yes

EPO Port:

Yes

Battery Information

Number of Batteries:

1

Battery Characteristics:

Maintenance-free, Sealed, Leak-proof

Battery Chemistry:

Lead Acid

Battery Energy:

432 kJ

Backup/Run Time (Full Load):

8.10 Minute

Backup/Run Time (Half Load):

24.40 Minute

Typical Battery Recharge Time:

2 Hour

Hot Swappable:

Yes

Replaceable Battery:

Yes

Environmental Conditions

Maximum Operating Temperature:

122°F (50°C)

Storage Temperature:

23°F (-5°C) - 131°F (55°C)

Maximum Operating Elevation:

9842.52 ft

Maximum Storage Elevation:

49212.60 ft

Storage Relative Humidity:

0% - 95%

Sound Emission (A-Weighted):

55 dB(A)

Thermal Dissipation:

26.38 W

Physical Characteristics

Height:

5.8"

Width:

14.3"

Depth:

6.7"

Form Factor:

Tower

Weight (Approximate):

25.31 lb

Miscellaneous

Package Contents:

500VA Panel Mount UPS

CD with software

Documentation CD

Installation guide

Smart UPS signalling RS-232 cable

Certifications & Standards:

UL Recognized

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Mercury Free:

Yes

Country of Origin:

Philippines

Warranty

Limited Warranty:

2 Year

Additional Warranty Information:

2 years repair or replace

Item Numbers

GTIN: 0785901473626

UPC: 785901473626

EAN: 0785901473626

UNSPSC: 39121011
