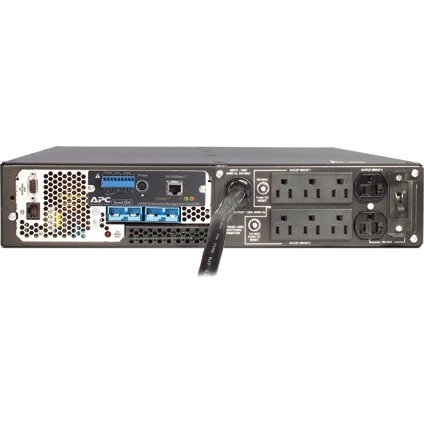

APC SUM3000RMXL2U UPS

The APC SUM3000RMXL2U UPS has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
APC  -  APC Smart-UPS XL Modular 3000VA Rackmount/Tower - 3000VA/2850W - 3.5 Minute Full Load - 2 x NEMA 5-20R - Surge-protected, 6 x NEMA 5-15R - Surge-protected
  • Line-interactive UPS provides optimal and uninterrupted power supply for maximum usability
  • Up to 3.50 minute runtime on full load to preserve critical data from power shortage interruptions
  • Lead Acid battery chemistry for your convenience and better usability
  • NEMA L5-30P plug/connector type for maximum usability with added reliability
  • NEMA 5-15R receptacle type offers ease of operation with maximum efficiency
  • 110 V AC input voltage for better reliance and maximum dependability
  • 120 V AC output voltage for optimal performance with maximum feasibility
  • Rack/Tower form factor for your convenience and simplicity of usage
Read More

Need a different version? See all APC Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
APC SUM3000RMXL2U UPS
APC SUM3000RMXL2U UPS
APC SUM3000RMXL2U UPS
APC SUM3000RMXL2U UPS
APC SUM3000RMXL2U UPS APC SUM3000RMXL2U UPS APC SUM3000RMXL2U UPS APC SUM3000RMXL2U UPS
APC Parts Accessory Model Overview
Products and parts from APC.
APC SUM3000RMXL2U UPS Overview
Smart-UPS XL Modular 3000VA Rackmount/Tower is high performance power protection with scalable runtime for servers, and voice and data networks. Voice over Internet Protocol, e-commerce, WiFi, and data enabled PBX's are a few of the applications driving the need for Smart-UPS XL. APC Smart-UPS XL is also the perfect UPS for fileservers minicomputers, Network switches and hubs, ATM's, telecommunications systems and other mission-critical applications requiring longer runtime. With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management. Connectivity is through a serial or USB port. Additional manageability is available through the SmartSlot. Network connection with Web browser management and/or environmental monitoring, serial port expansion, and out-of-band management options are available. The Smart-UPS XL is a UPS you can count on.

More from the Manufacturer

Technical Information
Plug/Connector Type:
NEMA L5-30P
Receptacle Type:
  • NEMA 5-15R
  • NEMA 5-20R
Receptacle Detail:
  • 2 x NEMA 5-15R
  • 6 x NEMA 5-20R
Bypass Switch:
Automatic & Manual
Emergency Power OFF:
Optional
Cord Length:
10 ft
Power Description
Load Capacity:
3000 VA/2850 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Surge Energy Rating:
540 J
Management
Network Management:
SNMP Manageable
Alarm:
  • On Battery
  • Low Battery
  • Configurable Delay
Battery Management:
Intelligent Battery Management
Controls/Indicators
Status Indicators:

LED status display with:

  • Load Bar-graphs
  • Battery Bar-graphs
  • On Line
  • On Battery
  • Replace Battery
  • Overload
  • Bypass
Interfaces/Ports
Serial Port:
Yes
Network (RJ-45):
Yes
USB:
Yes
Battery Information
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
3.50 Minute
Backup/Run Time (Half Load):
11.90 Minute
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
131°F (55°C)
Sound Emission (A-Weighted):
55 dB(A)
Thermal Dissipation:
87.92 W
Physical Characteristics
Product Color:
Black
Height:
3.4"
Width:
17"
Depth:
26.7"
Rack Height:
2U
Form Factor:
Rack/Tower
Weight (Approximate):
103 lb
Miscellaneous
Package Contents:
  • Smart-UPS XL Modular 3000VA Rackmount/Tower
  • CD with software
  • Installation Guide
  • Rack Mounting brackets
  • Rack Mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • User Manual
  • Web/SNMP Management Card
Additional Information:
  • Replacement battery cartridge quantity: 1
  • Units per Pallet: 8
  • Adjustable voltage-transfer points
  • Automatic Voltage Regulation (AVR)
  • Disconnected battery notification
  • Modular design
Certifications & Standards:
  • UL 1449
  • UL 1778
  • BSMI
  • CSA
  • FCC Part 15 Class A
  • NOM
  • VCCI
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0611101305248, 0731304224563, 4943783194732, 4963273167138
UPC: 611101305248, 731304224563
EAN: 0611101305248, 0731304224563, 4943783194732, 4963273167138
UNSPSC: 39121011
