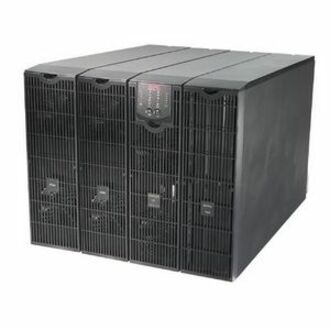

APC SURT10000XLT-2TF3 UPS

APC - APC Smart-UPS RT 10kVA Scalable to 10kVA Rack/Tower with Two Step-Down Transformer - 4 Minute Full Load - 10kVA - SNMP Manageable

Need a different version? See all APC Parts Accessories

Chat Now for Qty Discount

Add to Quote

$10,864.80

Overview

APC Parts Accessory Model Overview

Products and parts from APC.

APC SURT10000XLT-2TF3 UPS Overview

Smart-UPS RT 10kVA Scalable to 10kVA with Two Step-Down Transformer is high performance power protection with scalable runtime for space-constrained computer rooms, voice and data networks, medical labs, and light industrial applications. Featuring double conversion on-line topology, the Smart-UPS RT protects your data by supplying reliable, network-grade power. An unlimited number of matching battery packs can be added to comply with aggressive runtime demands of "always on" business-critical systems. Rack-optimized models are an ideal choice for space constrained environments. Customers looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction will find them in the Smart-UPS RT.

Detailed Specs

Technical Information

Plug/Connector Type:

Hard Wire 3-wire

Receptacle Type:

Hard Wire 3-wire
NEMA 5-20R
NEMA L14-30R
NEMA L6-20R
NEMA L6-30R

Receptacle Detail:

1 x Hard Wire 3-wire
16 x NEMA 5-20R
2 x NEMA L14-30R
6 x NEMA L6-20R
2 x NEMA L6-30R

Overload Protection:

Yes

Power Description

Load Capacity:

10000 VA

Input Voltage:

220 V AC

Output Voltage:

120 V AC
208 V AC

Input Frequency:

60 Hz

Output Frequency:

60 Hz

Waveform Type:

Sine Wave

Management

Network Management:

SNMP Manageable

Alarm:

On Battery
Low Battery
Overload

Bypass Switch:

Automatic & Manual

Emergency Power OFF:

Yes

Controls/Indicators

Status Indicators:

Bypass
Overload

Interfaces/Ports

Modular Slots:

SmartSlot

Battery Information

Battery Characteristics:

Spill-proof/Maintenance-free

Battery Chemistry:

Lead Acid

Backup/Run Time (Full Load):

4 Minute

Backup/Run Time (Half Load):

13.20 Minute

Environmental Conditions

Maximum Operating Temperature:

104°F (40°C)

Sound Emission (A-Weighted):

55 dB(A)

Thermal Dissipation:

649.45 W

Physical Characteristics

Product Color:

Black

Form Factor:

Tower

Height:

17"

Width:

21"

Depth:

26"

Weight (Approximate):

494 lb

Miscellaneous

Package Contents:

Smart-UPS RT 10kVA Scalable to 10kVA Rack/Tower with Two Step-Down Transformer
CD with software
Service Manual
Smart UPS signalling RS-232 cable
User Manual
Web/SNMP Management Card

Additional Information:

Supports both Tower and Rack-mountable configurations but does not include rack mounting kit
Output Voltage Distortion: Less than 3%
Crest Factor: 3 : 1
Replacement battery cartridge quantity: 2
Automatic restart of loads after UPS shutdown
InfraStruXure Manager Compatible
Frequency and voltage regulation
Generator Compatible
Input Power Factor Correction

Certifications & Standards:

CSA
FCC Part 15 Class A
UL 1778
UL 1449

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0000052152979

UPC: 000052152979

EAN: 0000052152979

UNSPSC: 39121011
