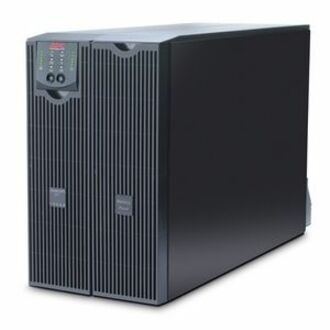

APC SURT10000XLT UPS

The APC SURT10000XLT UPS has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

APC Back-UPS Series - APC Smart-UPS RT 10000VA 208V UPS - 4 Minute Full Load - 10kVA - SNMP Manageable

Need a different version? See all APC Back-UPS Series Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Full specifications (PDF)

APC Back-UPS Series Accessory Model Overview

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

APC SURT10000XLT UPS Overview

Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. An unlimited number of matching battery packs can be added to comply with aggressive runtime demands of "always on" business-critical systems. users can support power hungry blade servers or heavily loaded equipment racks. Customers looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction will find them in the Smart-UPS RT.

Detailed Specs

Full specifications (PDF)

Technical Information

Plug/Connector Type:

Hard Wire 3-wire

Receptacle Type:

Hard Wire 3-wire
NEMA L6-20R
NEMA L6-30R

Receptacle Detail:

1 x Hard Wire 3-wire
2 x NEMA L6-20R
2 x NEMA L6-30R

Overload Protection:

Yes

Power Description

Load Capacity:

10000 VA/8000 W

Input Voltage:

220 V AC

Output Voltage:

208 V AC

Input Frequency:

60 Hz

Output Frequency:

60 Hz

Management

Network Management:

SNMP Manageable

Alarm:

On Battery
Low Battery
Overload

Bypass Switch:

Automatic

Emergency Power OFF:

Yes

Interfaces/Ports

Modular Slots:

SmartSlot

Battery Information

Battery Characteristics:

Spill-proof/Maintenance-free

Battery Chemistry:

Sealed Lead Acid (SLA)

Backup/Run Time (Full Load):

4 Minute

Backup/Run Time (Half Load):

13.20 Minute

Environmental Conditions

Maximum Operating Temperature:

104°F (40°C)

Thermal Dissipation:

649.45 W

Physical Characteristics

Color:

Black

Form Factor:

Tower

Rack Height:

Height:

10"

Width:

17"

Depth:

26"

Weight (Approximate):

244 lb

Miscellaneous

Package Contents:

Smart-UPS RT 10000VA 208V
CD with software
Service Manual
Smart UPS signalling RS-232 cable
User Manual
Web/SNMP Management Card

Additional Information:

Supports both Tower and Rack-mountable configurations but does not include rack mounting kit
Configurable for 208 or 240 nominal output voltage
Scalable runtime
Automatic restart of loads after UPS shutdown
InfraStruXure Manager Compatible
Automatic self-test
Frequency and voltage regulation
Generator Compatible
Input Power Factor Correction

Certifications & Standards:

CSA
FCC Part 15 Class A
UL 1778
UL 1449

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0731304205388, 0760574484230

UPC: 731304205388, 760574484230

EAN: 0731304205388, 0760574484230

UNSPSC: 39121011
