APC SURTA1000RMXL2U Accessory

The APC SURTA1000RMXL2U Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

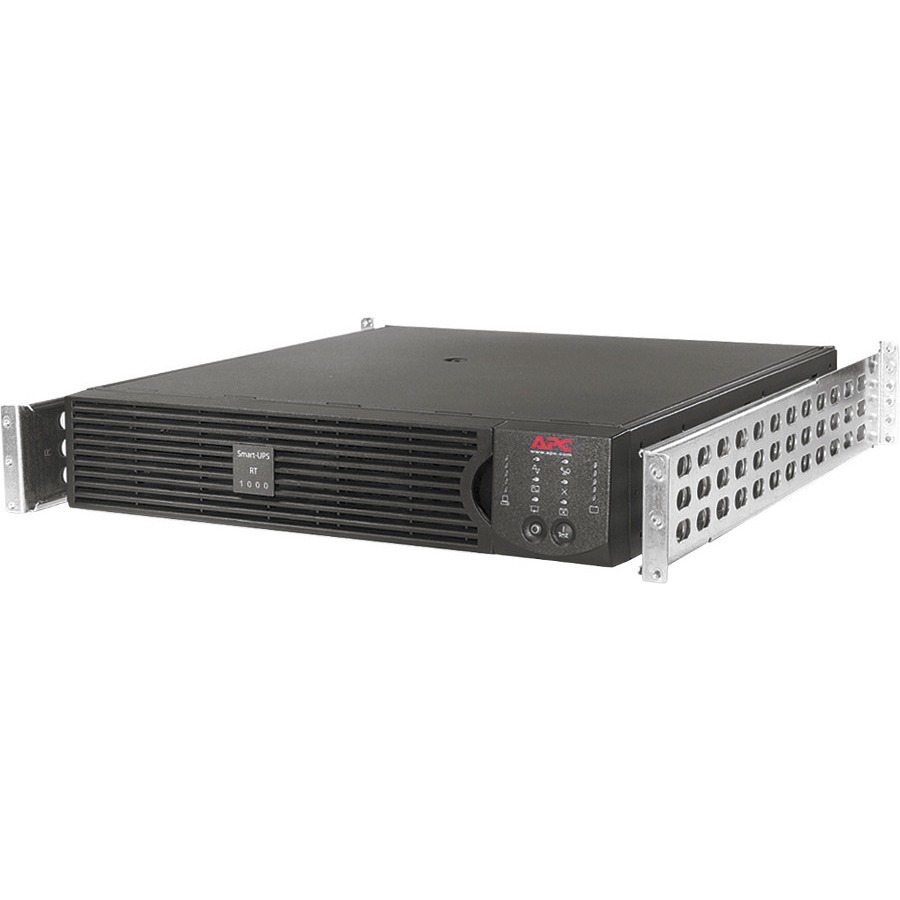

APC  -  Smart-UPS RT 1000VA RM 120V
  • Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
  • Surge protection type provides optimal power supply output with added usability
  • 1 batteries for better reliance and maximum dependability
  • 3 Hour typical battery recharge time for better convenience and prolonged, productive usage
  • Lead Acid battery chemistry for your convenience and better usability
  • NEMA 5-15P plug/connector type for maximum usability with added reliability
  • NEMA 5-15R receptacle type provides secure, reliable connection with added productivity
  • 120 V AC input voltage for maximum feasibility and added productivity
  • 120 V AC output voltage for optimal performance with maximum feasibility
  • Rack/Tower form factor for your convenience and simplicity of usage
Read More
Add to Quote
APC Parts Accessory Model Overview
Products and parts from APC.
APC SURTA1000RMXL2U Accessory Overview

A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

More from the Manufacturer

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:

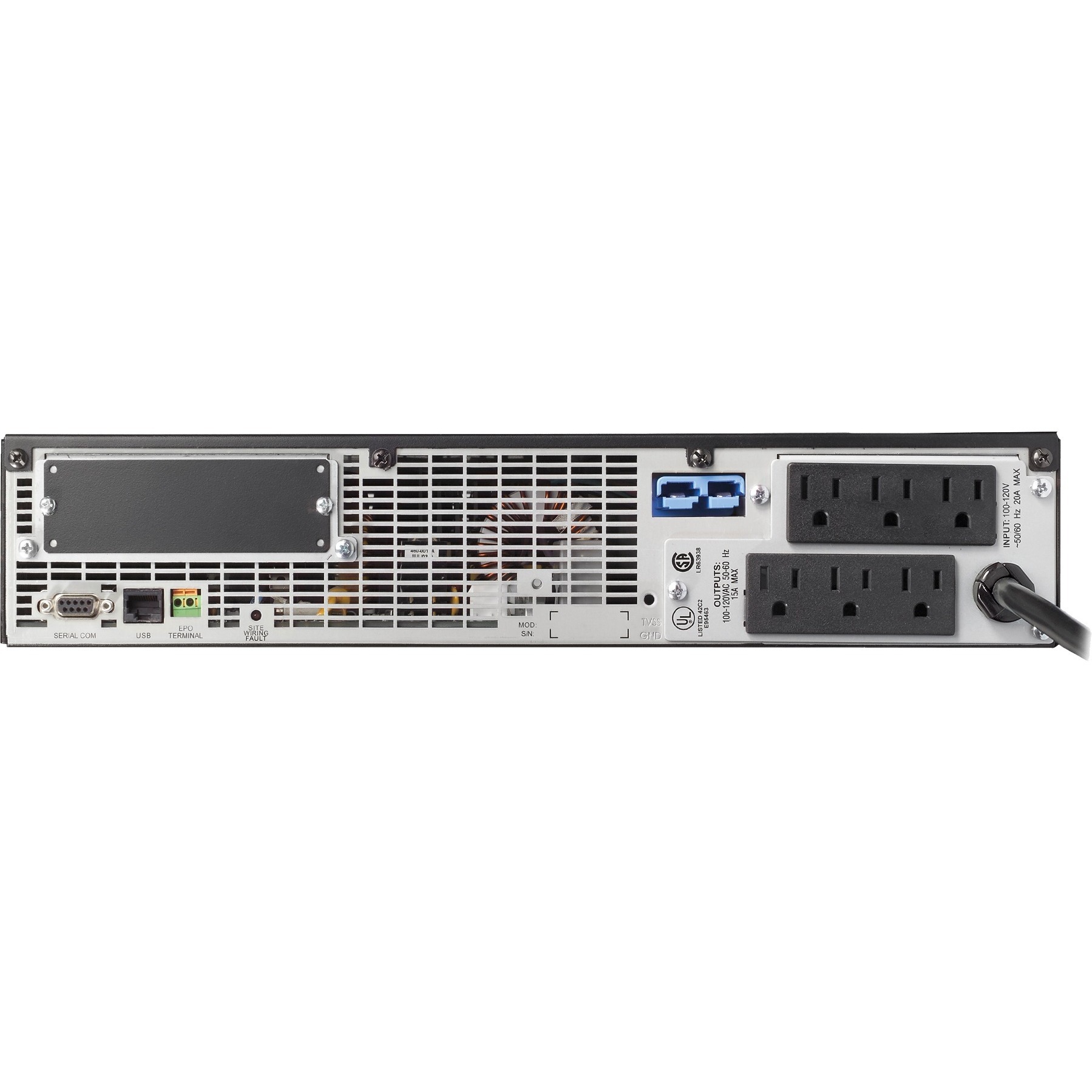

6 x NEMA 5-15R
Protection Type:
  • Surge
  • Over Loading
  • Spike
  • Lightning
Bypass Switch:
Automatic
Emergency Power OFF:
Yes
Cord Length:
6 ft
Power Description
Load Capacity:
1000 VA/800 W
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
540 J
Circuit Breaker:
Yes
Management
Alarm:
  • Overload
  • Low Battery
  • Fault
Battery Management:
Intelligent Battery Management
Controls/Indicators
Status Indicators:
LED Display:
  • On Battery
  • Replace Battery
  • Overload
  • Bypass Indicators
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Number of Batteries:
1
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Lead Acid
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
104°F (40°C)
Physical Characteristics
Product Color:
Black
Height:
3.3"
Width:
17"
Depth:
22"
Rack Height:
2U
Form Factor:
Rack/Tower
Weight (Approximate):
60.63 lb
Miscellaneous
Package Contents:
  • Smart-UPS RT 1000VA RM 120V
  • CD with Software
  • Documentation CD
  • Installation Guide
  • Rack Mounting Support Rails
  • Smart UPS Signalling RS-232 Cable
  • USB Cable
  • User Manual
Certifications & Standards:
  • BSMI
  • CSA
  • FCC Part 15 Class B
  • Ul 1778
  • OSHPD
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0643749351783, 0731304306115
UPC: 643749351783, 731304306115
EAN: 0643749351783, 0731304306115
UNSPSC: 39121011
