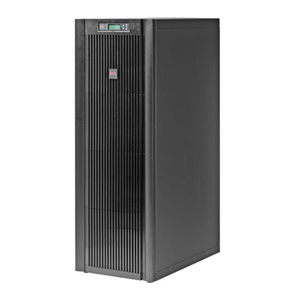

APC SUVTP20KF3B4S UPS

APC Back-UPS Series - APC by Schneider Electric Smart-UPS VT SUVTP20KF3B4S 20 kVA Tower UPS - Tower - 5 Hour Recharge - 12 Minute Stand-by - 220 V AC Input - 120 V AC, 208 V AC, 208 V AC Output - 1 x Screw Terminal, 1 x Hardwired

Need a different version? See all APC Back-UPS Series Accessories

Chat Now for Qty Discount

Add to Quote

$20,976.15

Overview

Full specifications (PDF)

APC Back-UPS Series Accessory Model Overview

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

APC SUVTP20KF3B4S UPS Overview

Smart-UPS VT offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, the Smart-UPS VT includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability. The rack mounted version maximizes valuable floor space by incorporating UPS, power distribution, and additional battery capacity in a single rack. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators due the Smart-UPS VT's Soft Start feature.

Detailed Specs

Full specifications (PDF)

Technical Information

Plug/Connector Type:

Hardwired

Receptacle Type:

Screw Terminal
Hardwired

Receptacle Detail:

1 x Screw Terminal
1 x Hardwired

Power Description

Load Capacity:

20 kVA

Input Voltage:

220 V AC

Output Voltage:

120 V AC
208 V AC

Input Frequency:

70 Hz

Output Frequency:

60 Hz

Input Current:

53 A

Management

Bypass Switch:

Automatic
Internal
Maintenance
Manual
Static

Emergency Power OFF:

Yes

Interfaces/Ports

Serial Port:

Yes

Modular Slots:

SmartSlot
1 x Battery

Battery Information

Battery Chemistry:

Lead Acid

Backup/Run Time (Full Load):

12 Minute

Backup/Run Time (Half Load):

31 Minute

Typical Battery Recharge Time:

5 Hour

Physical Characteristics

Form Factor:

Tower

Height:

59"

Width:

20.6"

Depth:

32"

Weight (Approximate):

1181 lb

Miscellaneous

Package Contents:

Smart-UPS VT SUVTP20KF3B4S 20 kVA Tower UPS
3 x Battery Modules ship installed
Bolt Down Brackets
CD with Software
Installation Guide
Network Management Card
Power Modules ship installed
Smart UPS Signalling RS-232 Cable
Start Up Service
User Manual

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0708766010867

UPC: 708766010867

EAN: 0708766010867

UNSPSC: 39121011
