APC SY40K40F UPS

APC Back-UPS Series  -  APC Symmetra PX 40kW UPS - 40000VA - 3.8 Minute Full Load - 1, 1 x Screw Terminal
  • Double Conversion Online UPS is a productive and reliable power supply solution
  • Keep your sensitive devices powered with a backup of up to 3.80 minute at full load
  • 40 kW power consumption for ideal charging power requirement with added dependability
  • 3 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
  • Lead Acid battery chemistry for your convenience and better usability
  • Hardwired plug/connector type for maximum usability with added reliability
  • Screw Terminal receptacle type offers maximum safety, convenience, and increased usability
  • 208 V AC output voltage for maximum dependability and added productivity
Read More

Need a different version? See all APC Back-UPS Series Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$61,643.48
APC SY40K40F UPS
APC SY40K40F UPS
APC SY40K40F UPS
APC SY40K40F UPS APC SY40K40F UPS APC SY40K40F UPS
Full specifications (PDF)
APC Back-UPS Series Accessory Model Overview
An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.
APC SY40K40F UPS Overview

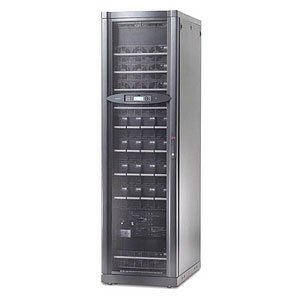

Advances in Large Corporation computing, storage technologies, an increasing power demand, requires a change in Large Corporation power protection technology. Symmetra PX 40000VA, three phase input/ three phase output (3:3), is a single unit, composed of modular components. This modular architecture provides the foundation of building and scaling near-continuous availability power systems with a flexible range of power capacity. The Symmetra PX 40000VA packages the high availability requirements of easy power and runtime scalability into a very small footprint. Combined with the complete line of APC datacenter protection software and accessories it provides the four most critical elements of total datacenter protection.
Full specifications (PDF)
Technical Information
Plug/Connector Type:
Hardwired
Receptacle Type:
Screw Terminal
Receptacle Detail:
1 x Screw Terminal
Bypass Switch:
Static
Emergency Power OFF:
Yes
Power Description
Load Capacity:
40 kVA
Output Voltage:
208 V AC
Power Consumption:
40 kW
Waveform Type:
Sine Wave
Management
Network Management:
SNMP Manageable
Alarm:
  • On Battery
  • Low Battery
Battery Management:
Intelligent Battery Management
Interfaces/Ports
Network (RJ-45):
Yes
Total Number of Expansion Slots:
2
Battery Information
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
3.80 Minute
Backup/Run Time (Half Load):
14.50 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
104°F (40°C)
Sound Emission (A-Weighted):
64 dB(A)
Thermal Dissipation:
3402.85 W
Physical Characteristics
Product Color:
Black
Height:
82"
Width:
24"
Depth:
35.5"
Rack Height:
42U
Weight (Approximate):
1705 lb
Miscellaneous
Package Contents:
  • User Manual
  • Web/SNMP Management Card
Additional Information:
  • Audible Alarms
  • Automatic Self Test
  • Battery modules connected in parallel
  • Cold-start
  • Compact Design
  • Early-warning Problem Notification
  • Easy Maintenance
  • Event logging
  • Front-access servicing
  • Full-rated Power with kVA equaling kW
  • Galvanic isolation
  • Generator Compatible
  • Hot Swap Electronics
  • Input Power Factor Correction
  • LCD AlphaNumeric Display
  • Load Meter
  • Menu-driven Operating Instructions
  • Modular Fault-tolerant Design
  • Modular-level Repair
  • Multiple System Shutdown
  • N+1 Redundancy
  • Out-of-Band Management
  • Overload Indicator
  • Pager notification
  • Programmable power event response
  • Rated for Power-Factor Corrected Loads
  • Revolutionary Modular Design for built-In Fault-Tolerance
  • Scalable Power Capacity
  • Scalable Run Time
  • Smallest footprint
  • Wide input voltage range
Certifications & Standards:
  • cUL Listed
  • EN 50091-1
  • EN 50091-2
  • FCC Part 15 Class A
  • ISO 14001
  • ISO 9001
  • UL 1778
  • UL 60950
Country of Origin:
United States
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0000003980552
UPC: 000003980552
EAN: 0000003980552
UNSPSC: 39121011
